Our NEW replacement bearing housings are cast in only the finest materials and are finished in OE specification. Unless stated, all housings are a direct replacement for the original.

Condition :             NEW

Brand:                   AFTERMARKET

OE Part Number : UNKNOWN

Quality:                 OE

Turbo Model:        MITSUBISHI,TD03

SPECIFICATIONS

A) Bearing Housing Hub (Turbine Side)                     =  41mm

B) Bearing Housing to Turbine Housing Flange         =  48.9mm

C) Compressor Wheel Recess                                   =  47mm

D) Bearing Housing To Compressor Housing Flange = 69.8mm

E) Bearing Housing Compressor Flange Step            =  64mm

F) Oil Inlet Style/Thead                                               =  14.5mm

G) Oil Outlet Style/Thread                                           =  2 - M6 x 1

H) Water Port Thread                                                  =  2 - 14.5

VNT Lever Position (if applicable)                               =  N/A

NOTES:

-

Turbochargers using this bearing housing include:

49131-07015

49131-07016

49131-07017

49131-07018

49131-07019

49131-07025

49131-07026

49131-07027

49131-07028

49131-07029

49131-07040

49131-07050

49131-07075

49131-07076

49131-07077

49131-07078

49131-07079

49131-07085

49131-07086

49131-07087

49131-07088

49131-07089

49131-07125

49131-07170

49131-07180

49131-07225

49131-07226

49131-07227

49131-07228

49131-07229

49131-07255

49131-07256

49131-07257

49131-07258

49131-07287

49131-07288

49131-07289

49131-07293

49131-07325

49131-07326

49131-07327

49131-07328

49131-07355

49131-07357

49131-07358

Average dispatch: 24 Hours

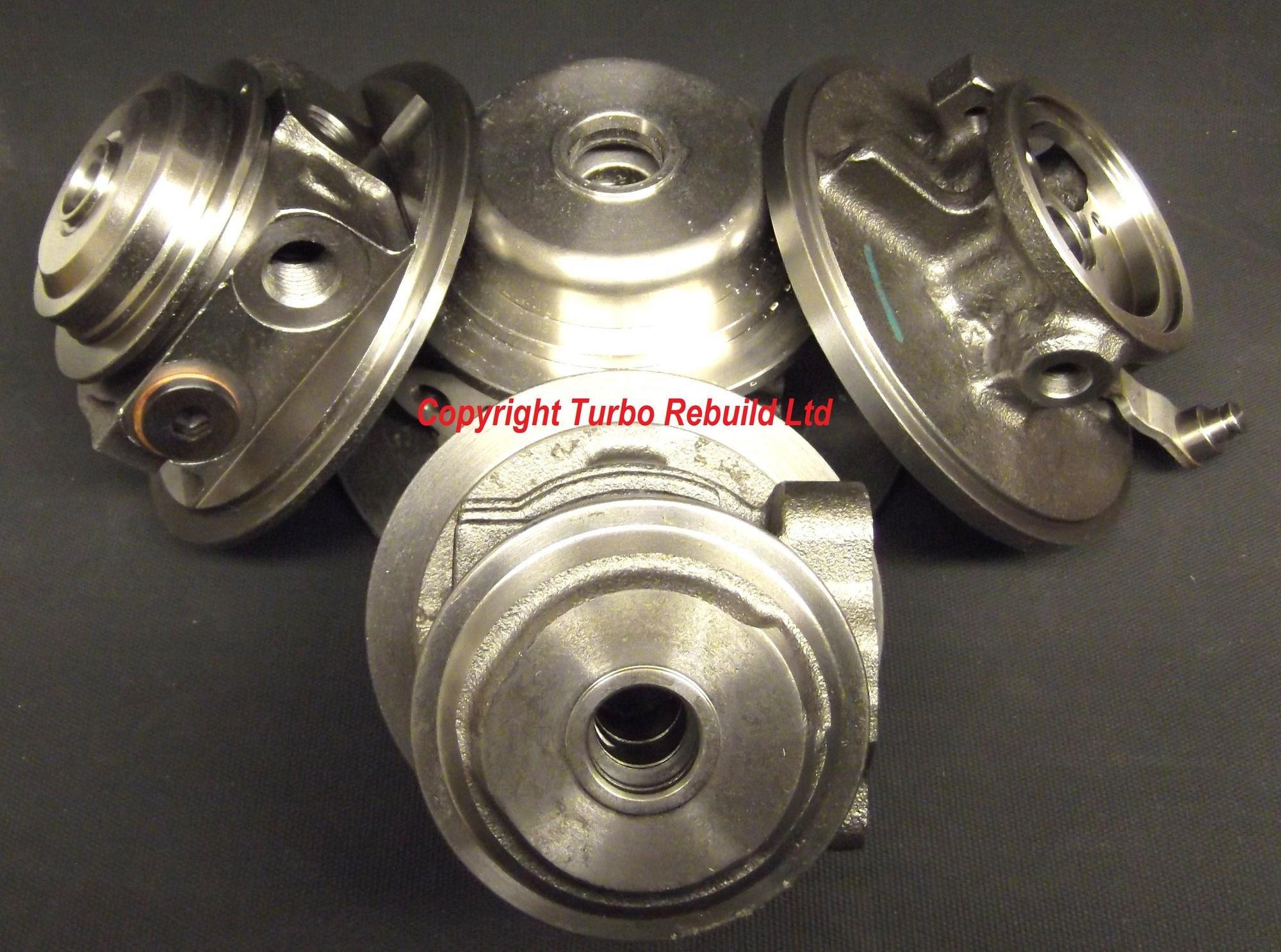

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
