Our NEW replacement bearing housings are cast in only the finest materials and are finished in OE specification. Unless stated, all housings are a direct replacement for the original.

Condition :             NEW

Brand:                   AFTERMARKET

OE Part Number : UNKNOWN

Quality:                 OE

Turbo Model:        MITSUBISHI, TD04L

SPECIFICATIONS

A) Bearing Housing Hub (Turbine Side)                     =  53.0mm

B) Bearing Housing to Turbine Housing Flange         =  112.4mm

C) Compressor Wheel Recess                                   =  52.0mm

D) Bearing Housing To Compressor Housing Flange = 88.0mm

E) Bearing Housing Compressor Flange Step            = 79.9mm

F) Oil Inlet Style/Thead                                               =  M10 x 1.0

G) Oil Outlet Style/Thread                                           =  2 - M6 x 1

H) Water Port Thread                                                  = N/A

VNT Lever Position (if applicable)                               = 1

NOTES:

Oilcooled

Turbochargers using this bearing housing include:

49377-07400

49377-07401

49377-07402

49377-07403

49377-07404

49377-07405

49377-07406

49377-07420

49377-07421

49377-07422

49377-07423

49377-07424

49377-07430

49377-07440

49377-07460

Average dispatch: 24 Hours

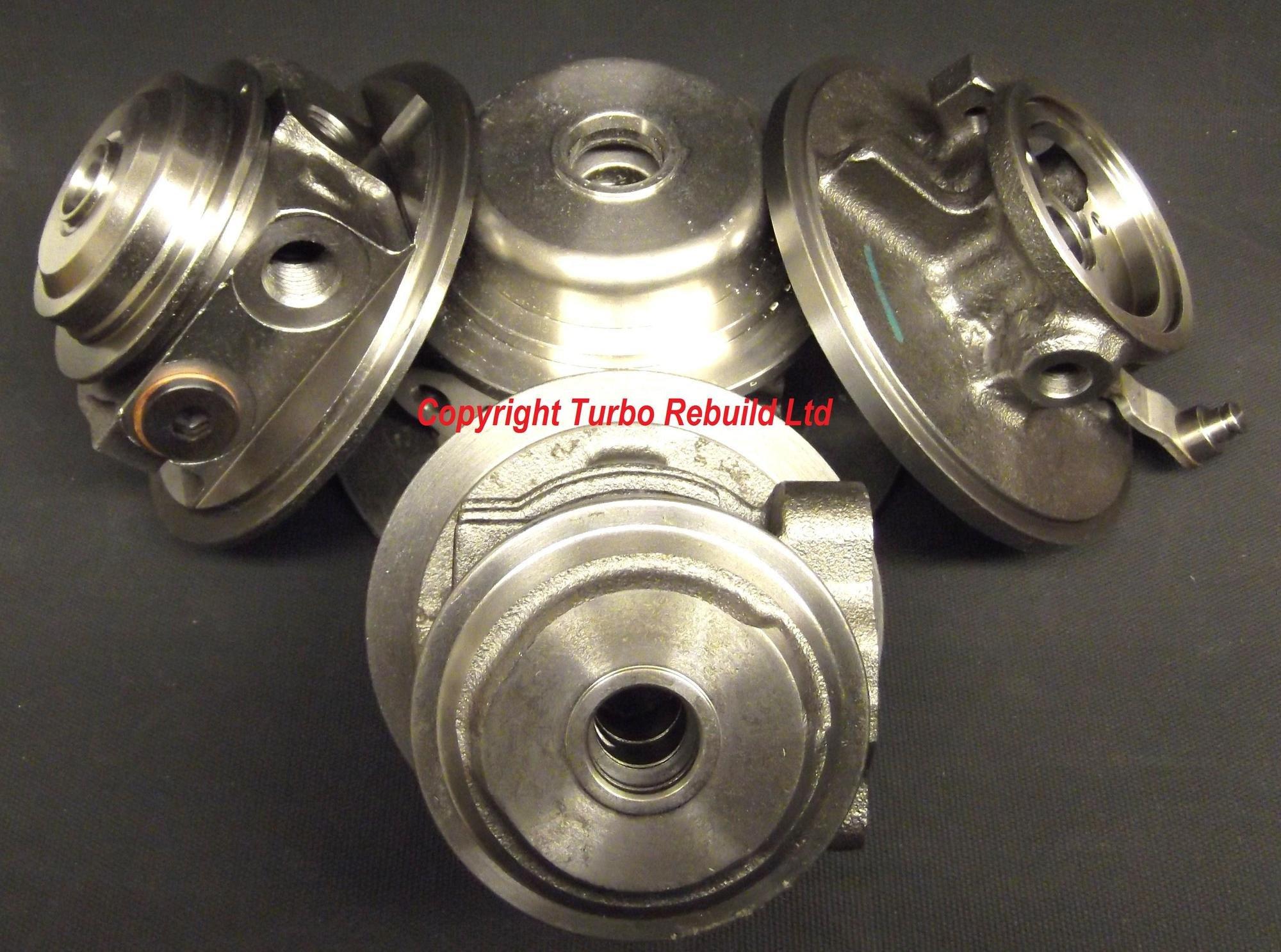

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
