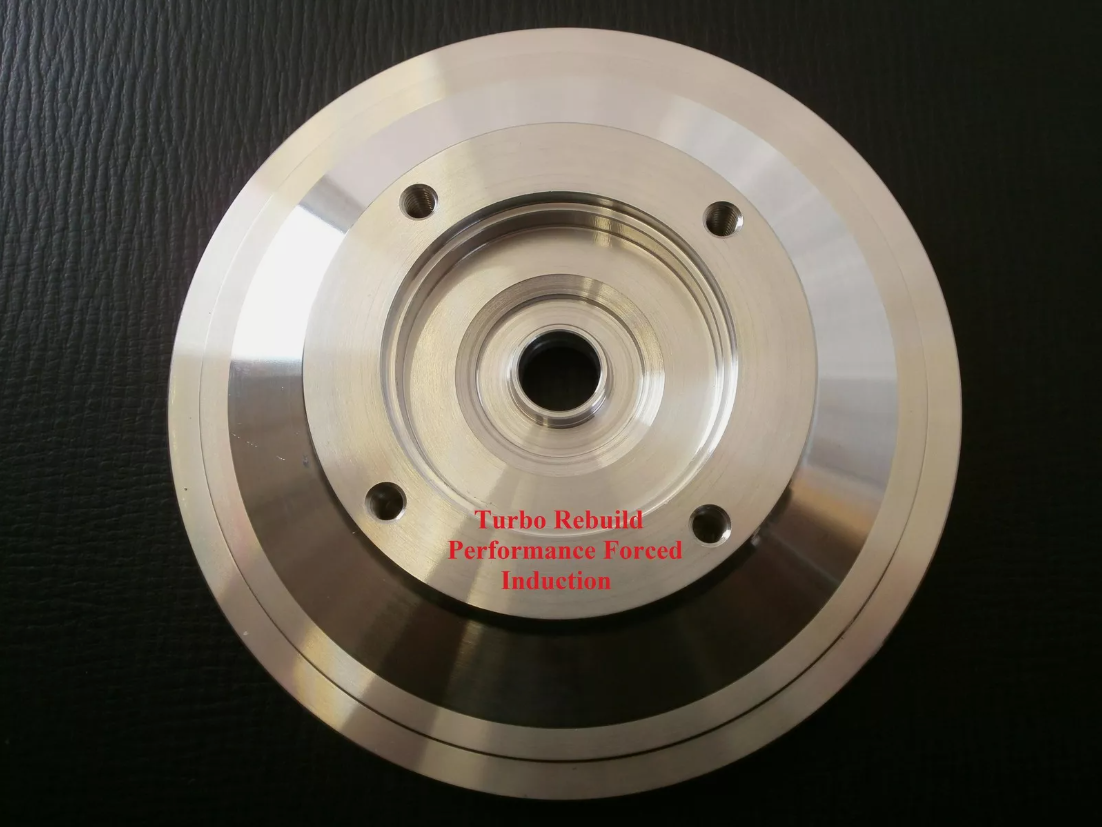

This is a BRAND NEW Turbocharger Seal Plate / Back Plate.

This turbo seal plate/back plate is made using only the finest materials to make sure it matches or exceeds the standards of the original.

BRAND:                                                                           AFTERMARKET

QUALITY :                                                                       OE

OE SEAL PLATE NUMBER:                                          434820-0006

COMPRESSOR RECESS (A):                                        61.5mm

COMPRESSOR HOUSING LOCATING FLANGE (B):   116.0mm

SEAL PLATE OD (C):                                                     129.0mm

TOTAL HEIGHT (D):                                                       13.6mm

THRUST COLLAR BORE (E):                                         10mm

This turbo seal plate fits the following OE turbo part numbers:

711017-0001

711017-0002

711017-0003

711017-0004

729355-0001

729355-0002

729355-0003

734899-0001

734899-0002

743115-0001

743115-0003

743436-0001

743436-0002

743436-0003

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
