This is a BRAND NEW Turbocharger Seal Plate / Back Plate

The Turbo seal plate/back plate is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:                                                                           AFTERMARKET

QUALITY :                                                                       OE

OE SEAL PLATE NUMBER:                                          433254-0001 433254-0005

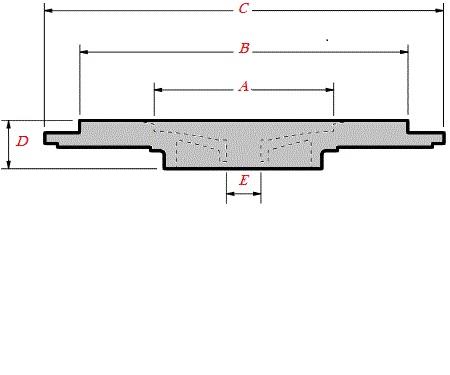

COMPRESSOR RECESS (A):                                        53.9mm

COMPRESSOR HOUSING LOCATING FLANGE (B):   96.3mm

SEAL PLATE OD (C):                                                     112.2mm

TOTAL HEIGHT (D):                                                       12.0mm

THRUST COLLAR BORE (E):                                         10mm

This turbo seal plate fits the following OE turbo part numbers:

452084-0004

452084-0007

452124-0004

452124-0005

454006-0002

454006-0004

454080-0001

454080-0002

454080-0004

454080-0005

454158-0001

454158-0003

454158-0004

454159-0001

454161-0001

454161-0003

454161-0004

454165-0001

454187-0001

704345-0001

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
