Audi S3 Hybrid Turbocharger Upgrade – 450+ BHP K04 Performance Turbo

Upgrade your Audi S3 with one of the highest performing K04 hybrid turbochargers available for the platform. Our Audi S3 Hybrid Turbocharger has been engineered to dramatically increase airflow and power potential while retaining the direct bolt-on fitment of the factory K04 turbo.

Designed using extensive motorsport experience and precision engineering, this turbocharger upgrade is capable of producing 450+ BHP with the correct supporting modifications and custom ECU calibration.

This makes it the ideal solution for enthusiasts looking to push their Audi S3, EA888, or K04-equipped platform far beyond factory performance while maintaining excellent drivability and response.

Key Features

• Direct replacement K04 hybrid turbo upgrade for Audi S3

• Capable of 450+ BHP with supporting modifications

• 54mm compressor inducer and turbine wheel

• Forged billet 2618 aircraft-grade aluminium compressor wheel

• High flow 9-blade Inconel 713 turbine wheel

• Race proven 360° thrust bearing system (20% larger than OE)

• 3-stage balancing including high speed VSR balancing

• Total closure rear piston ring to prevent oil seepage

• Supplied with upgraded OE-style actuator

• Includes genuine boost control solenoid

• CNC machined high flow turbo muffler delete

• Direct bolt-on fitment

High Performance Hybrid Turbocharger for Audi S3

This Audi S3 hybrid turbocharger is designed as a high performance evolution of the factory K04 turbocharger, offering significantly improved airflow and power potential while maintaining factory-style installation.

With a 54mm compressor inducer and matching turbine wheel, this turbocharger moves substantially more air than the standard unit, allowing the engine to safely produce well over 450 horsepower when correctly tuned.

The turbo is ideal for high performance road builds, track cars, and serious fast road applications where maximum performance from the K04 platform is required.

Billet Anti-Surge Compressor Wheel

The compressor wheel is manufactured from forged 2618 aircraft-grade aluminium, precision machined from a solid billet alloy block.

Benefits of this advanced compressor design include:

• Increased strength compared to cast compressor wheels

• Reduced rotational mass for faster turbo spool

• Higher airflow efficiency at elevated boost pressures

• Improved reliability under extreme performance conditions

The anti-surge compressor design also helps maintain stable airflow during rapid throttle transitions and high boost operation.

Motorsport Grade Inconel Turbine Wheel

On the turbine side, the turbo features a high flow 9-blade turbine wheel manufactured from Inconel 713, a material commonly used in motorsport and aerospace applications.

Inconel provides exceptional resistance to extreme exhaust gas temperatures, making it ideal for high boost performance engines.

Advantages include:

• Improved exhaust gas flow

• Enhanced durability under extreme heat

• Greater high-RPM power capability

Race Proven Bearing System

To support the increased performance levels, this turbocharger utilises a race proven 360° thrust bearing system, approximately 20% larger than the standard OE bearing assembly.

This upgraded bearing design offers:

• Greater load capacity under high boost pressure

• Improved oil film stability

• Increased reliability in high performance applications

A total closure rear piston ring seal is also incorporated to minimise the risk of oil seepage, particularly when used with low back-pressure aftermarket exhaust systems.

Precision Motorsport Balancing

Each turbocharger is subjected to a 3-stage precision balancing process to ensure optimal reliability and performance.

The final stage involves high speed balancing on our in-house Vibration Sorting Rig (VSR), performed to motorsport tolerances. This ensures the rotating assembly remains stable at extremely high RPM levels.

This process helps deliver:

• Smooth operation

• Reduced vibration

• Increased turbocharger lifespan

Supplied Components

Each Audi S3 hybrid turbocharger is supplied with:

• Upgraded OE-style actuator

• Genuine boost control solenoid

• CNC machined high flow turbo muffler delete

These components help maximise airflow while maintaining a clean OEM-style installation.

Installation & ECU Tuning

This turbocharger is a direct replacement for the factory Audi S3 K04 turbocharger, making installation straightforward.

However, due to the significantly increased airflow capability:

⚠️ A professional custom ECU calibration is required.

Off-the-shelf ECU maps are NOT suitable for this turbocharger.

With the correct supporting modifications such as upgraded fueling, intercooling, intake and exhaust systems, this turbocharger can reliably produce 450+ BHP.

Supply Options

This hybrid turbocharger can be supplied in two ways:

Brand New Turbo Option

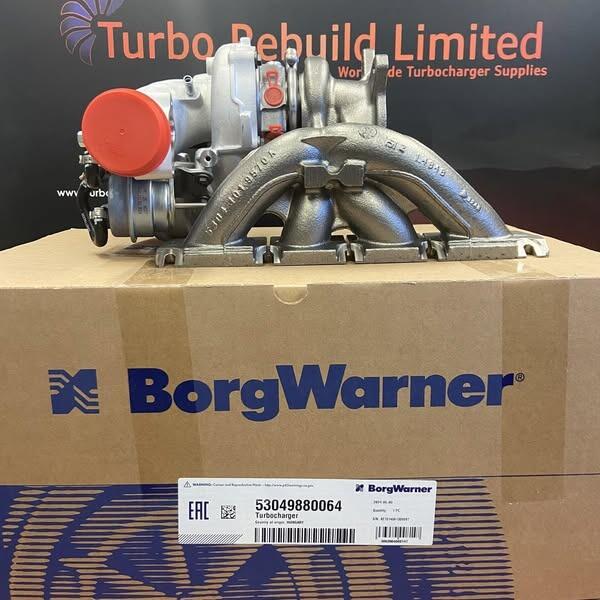

• Built using a brand new genuine OE turbocharger

Exchange Turbo Option

• Built using your original K04 turbocharger on an exchange basis

Build Time

Current build time:

7–10 working days

Each turbocharger is individually built, assembled and balanced to ensure the highest quality and performance standards.

FITMENT:

Audi S1, S3, TTS 2.0TFSi (265BHP variant) 2006 onwards

Seat Leon Cupra R (265BHP variant) 2006 onwards

VW Volkswagen Golf GTi Edition 30 (265 variant) 2006 onwards

PART NUMBERS:

5304-970-0064 (53049700064, 5304-980-0064, 53049800064, 5304-988-0064, 53049880064, 53049980064, 53049980064)

5304-970-0191 (53049700191, 5304-980-0191, 53049800191, 5304-988-0191, 53049880191, 53049980191, 53049980191)

K04-0064 K04-064

K04-0191 K04-191

06F145702C

BZC

BHZ 16v

BWJ

BYD

CDLA 16v

CDLB

CDLC

CDLD

CDLF

CDLG

CDLH

CDLK

CDMA

WARNING: This turbocharger features larger wheels and is not compatible with standard ECU calibrations or off-the-shelf maps/flash files. Use of this turbocharger requires a fully custom ECU calibration (custom/live mapping).

Failure to correctly custom-map the ECU may result in poor performance, ECU fault codes, and engine and/or turbocharger damage. Damage resulting from incorrect or absent ECU calibration is not covered under warranty.

All warranty claims are subject to return-to-manufacturer inspection. If an issue is determined to be caused by application, installation, or tuning rather than a manufacturing defect, warranty will be denied and any remedial work will be chargeable.
