Welcome to this listing for a Brand New Turbocharger REA (Rotational Electronic Actuator) Actuator Repair Plug for the Garrett / Hella Actuators.

REA actuators are fitted to a variety of different variable geometry turbos and control the variable vane movement.

This listing is for the electronic actuator loom plug to fit the Hella-style electronic actuators. Please see images. This plug is to replace the plug on the engine loom of the application which could be damaged. It comes complete with 'pig tails' to allow it to be joined to vehicle loom.



FITS:

Actuator 'G' Number:

G-001, G-004, G-008, G-009, G-013, G-014, G-022, G-027, G-031, G-038, G-040, G-045, G-047, G-049, G-079, G-109, G-125, G-185, G-186, G-203, G-211, G-219, G-221, G-222, G-271, G-276, G-277, G-290

Turbo Part Number:

727461, 727463, 728680, 731877, 734899, 736088, 742110, 742693, 742730, 742693, 743436, 750080, 750773, 755297, 755300, 757068, 757608, 758226, 758352, 759688, 761399, 762060, 762463, 762965, 763148, 763647, 765155, 765156, 765314, 765985, 767378, 769701, 770895, 777318, 781743, 794877, 796611, 796910, 796911, 798015, 802774, 809415, 815479, 49335- 19411

Hella Ref:

6NW009550, 6NW009206, 6NW009483, 6NW009660, 6NW009543, 6NW009228, 6NW008412, 6NW 009 550, 6NW 009 228, 6NW 009 543, 6NW 008 412, 6NW 010 099, 6NW 009 660, 6NW 010 430, 6NW 009 206, 59001107266

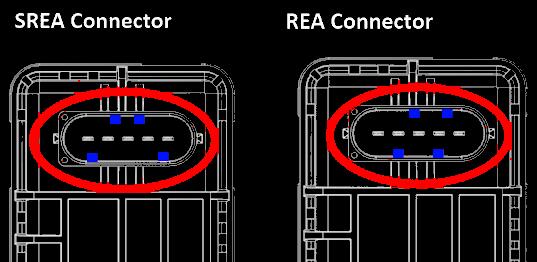

ONLY TO FIT ACTUATORS WITH THE GUIDE PINS ON THE RIGHT HAND SIDE (REA).



PLEASE NOTE: THIS PLUG REQUIRES CUTTING INTO THE ORIGINAL VEHICLE LOOM AND JOINING. IT IS ADVISED TO ONLY BE UNDERTAKEN BY A PROFESSIONAL
