This is a BRAND NEW Turbocharger Seal Plate / Back Plate

This turbo seal plate/back plate is made using only the finest materials to make sure it matches or exceeds the standards of the original.

BRAND:                                                                           AFTERMARKET

QUALITY :                                                                       OE

OE SEAL PLATE NUMBER:                                           408045-0034

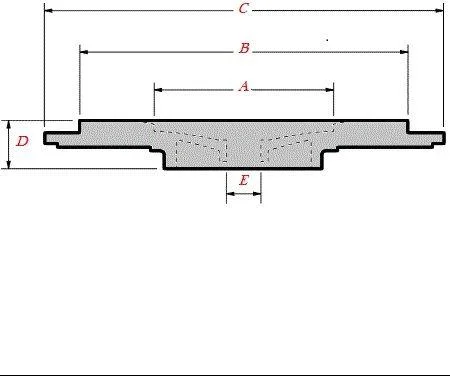

COMPRESSOR RECESS (A):                                        71.5mm

COMPRESSOR HOUSING LOCATING FLANGE (B):   114.2mm

SEAL PLATE OD (C):                                                      133.2mm

TOTAL HEIGHT (D):                                                        19.3mm

THRUST COLLAR BORE (E):                                         12.7mm

NOTES:                                                                           Thread 4-1/4-20 UNC

This turbo seal plate fits the following OE turbo part numbers:

TB3403

T34 Lancia Delta Intergrale

408970-0002

408970-0003

408970-0004

409000-0002

409040-0010

409040-0011

409040-0012

409040-0013

409040-0014

409040-0015

409040-0016

409040-0017

409080-0001

409080-0009

409080-0010

409080-0011

409080-0012

409080-0013

409181-0001

409181-0002

409200-0001

409200-0004

409200-0005

409200-0006

409200-0007

409200-0008

409200-0010

409200-0011

409200-0012

409200-0013

409200-0014

409220-0001

409220-0002

409220-0003

409240-0001

409240-0003

409241-0001

409250-0001

409250-0002

409300-0001

409300-0002

409300-0003

409300-0004

409300-0005

409300-0006

409300-0007

409300-0008

409300-0009

409300-0010

409300-0011

409300-0012

409300-0013

409300-0014

409300-0015

409300-0016

409300-0017

409300-0018

409300-0019

409300-0020

409300-0021

409300-0022

409300-0023

409300-0024

409300-0025

409300-0026

409300-0027

409300-0028

409300-0029

409300-0030

409300-0031

409410-0001

409410-0002

409410-0003

409410-0004

409410-0005

409410-0006

409410-0007

409410-0008

409410-0009

409410-0010

409410-0011

409410-0012

409410-0013

409410-0014

409410-0015

409570-0010

409570-0014

409570-0016

409570-0017

409570-0018

409570-0019

409570-0020

409640-0001

409640-0004

409710-0001

409710-0002

409730-0001

409730-0002

409730-0003

409730-0004

409730-0005

409761-0002

409770-0001

409770-0011

409770-0018

409770-0019

409770-0022

409770-0023

409770-0024

409770-0025

409840-0001

409840-0002

409840-0003

409840-0004

409840-0005

409840-0006

409840-0007

409840-0008

409840-0009

409840-0010

409840-0012

409840-0109

409860-0001

409860-0002

409860-0003

409860-0004

409860-0005

409930-0001

409930-0002

409930-0003

409930-0004

409930-0005

409930-0006

409930-0007

409930-0008

409930-0009

409940-0001

409940-0002

409940-0003

409940-0004

409940-0005

409940-0006

409940-0007

452017-0001

452017-0002

452017-0003

452018-0002

452018-0003

452018-0004

465040-0001

465040-0002

465040-0003

465040-0004

465040-0005

465040-0006

465044-0017

465044-0019

465044-0024

465044-0025

465044-0026

465044-0027

465044-0028

465044-0029

465044-0030

465044-0031

465044-0033

465044-0034

465044-0035

465044-0036

465044-0037

465044-0038

465044-0039

465044-0040

465044-0041

465044-0042

465044-0043

465044-0044

465044-0045

465044-0046

465044-0047

465044-0048

465044-0049

465044-0050

465044-0054

465044-0055

465044-0056

465044-0058

465044-0059

465044-0060

465044-0061

465044-0062

465044-0063

465044-0064

465044-0220

465044-0225

465044-0226

465044-0227

465044-0228

465044-0229

465044-0231

465044-0233

465044-0234

465044-0235

465044-0236

465044-0238

465044-0242

465044-0245

465044-0246

465044-0248

465044-0250

465044-0251

465044-0252

465044-0255

465044-0256

465044-0257

465044-0258

465044-0259

465044-0260

465044-0261

465044-0262

465044-0263

465062-0001

465062-0002

465062-0003

465070-0001

465070-0002

465070-0003

465070-0004

465070-0005

465070-0006

465070-0007

465070-0008

465070-0009

465070-0010

465070-0011

465078-0001

465078-0002

465078-0003

465088-0001

465088-0002

465088-0003

465114-0001

465114-0002

465114-0003

465114-0004

465114-0005

465118-0001

465118-0002

465118-0003

465118-0004

465118-0005

465118-0006

465118-0007

465124-0003

465154-0001

465154-0002

465154-0003

465154-0004

465154-0005

465154-0006

465154-0007

465154-0008

465154-0009

465154-0010

465154-0011

465154-0012

465154-0013

465154-0014

465154-0015

465154-0016

465154-0017

465154-0018

465154-0019

465154-0020

465154-0021

465154-0022

465154-0023

465154-0024

465154-0025

465154-0026

465154-0027

465154-0028

465184-0002

465186-0001

465191-0001

465191-0003

465191-0004

465194-0001

465198-0001

465198-0002

465198-0003

465204-0001

465210-0014

465212-0001

465212-0002

465218-0001

465218-0002

465218-0003

465218-0004

465218-0005

465218-0006

465218-0007

465218-0008

465218-0010

465226-0002

465226-0004

465226-0005

465240-0001

465241-0001

465242-0001

465242-0002

465242-0003

465242-0005

465242-0008

465254-0001

465254-0002

465254-0003

465254-0004

465254-0006

465254-0007

465254-0008

465254-0009

465254-0010

465260-0002

465260-0003

465269-0001

465269-0002

465269-0003

465269-0004

465269-0005

465269-0006

465269-0007

465269-0008

465269-0009

465269-0010

465269-0011

465269-0012

465269-0013

465288-0001

465288-0002

465288-0003

465288-0004

465288-0005

465288-0006

465300-0001

465300-0003

465300-0004

465300-0006

465300-0007

465300-0008

465310-0001

465310-0002

465310-0003

465310-0004

465310-0005

465310-0006

465310-0007

465342-0001

465360-0002

465360-0003

465360-0004

465360-0005

465360-0006

465360-0007

465360-0008

465360-0009

465360-0010

465360-0011

465360-0012

465360-0013

465366-0001

465366-0002

465366-0003

465366-0004

465366-0005

465366-0006

465366-0007

465366-0008

465366-0009

465366-0010

465366-0011

465366-0012

465366-0013

465366-0014

465366-0015

465366-0016

465366-0017

465366-0018

465366-0019

465366-0020

465366-0021

465366-0022

465366-0023

465366-0024

465372-0001

465424-0001

465442-0001

465468-0001

465468-0002

465468-0003

465468-0004

465468-0005

465468-0006

465468-0007

465468-0008

465468-0009

465468-0010

465468-0011

465468-0012

465468-0015

465468-0016

465468-0017

465468-0018

465468-0019

465468-0020

465472-0002

465472-0003

465472-0004

465472-0005

465472-0007

465472-0008

465472-0010

465472-0011

465472-0012

465472-0013

465472-0014

465472-0015

465472-0016

465476-0005

465478-0001

465478-0002

465478-0003

465504-0001

465504-0002

465547-0001

465547-0002

465547-0003

465550-0001

465550-0002

465550-0003

465550-0004

465550-0005

465570-0001

465570-0002

465570-0003

465570-0004

465570-0005

465570-0006

465570-0007

465570-0008

465590-0003

465590-0004

465590-0005

465590-0006

465592-0001

465592-0002

465600-0001

465600-0002

465600-0003

465600-0004

465600-0005

465600-0006

465600-0007

465600-0008

465600-0009

465600-0010

465610-0001

465610-0002

465610-0003

465610-0004

465610-0005

465610-0006

465610-0007

465610-0008

465610-0009

465610-0010

465610-0011

465610-0012

465630-0002

465640-0001

465640-0002

465640-0003

465640-0004

465640-0005

465640-0006

465640-0007

465640-0008

465640-0009

465640-0011

465640-0013

465640-0014

465640-0015

465640-0016

465640-0017

465640-0018

465640-0019

465640-0020

465640-0021

465640-0022

465640-0023

465640-0024

465640-0025

465640-0026

465640-0027

465660-0001

465660-0002

465660-0003

465660-0004

465660-0005

465660-0006

465660-0007

465660-0008

465660-0009

465660-0010

465660-0011

465660-0012

465660-0013

465660-0014

465740-0001

465740-0002

465740-0003

465740-0004

465740-0005

465740-0006

465744-0001

465744-0002

465744-0003

465744-0004

465744-0005

465744-0006

465750-0001

465772-0001

465810-0001

465810-0002

465810-0005

465820-0001

465820-0002

465820-0003

465820-0004

465820-0005

465824-0001

465824-0002

465824-0003

465824-0004

465824-0005

465824-0006

465828-0001

465828-0002

465828-0003

465862-0001

465880-0002

465894-0002

465894-0003

465898-0001

465898-0002

465899-0001

465899-0002

465948-0001

465958-0001

465958-0002

465958-0003

465958-0004

465958-0005

465958-0006

465958-0007

465960-0001

465960-0002

465960-0003

465960-0004

465960-0005

465960-0006

465960-0007

465960-0008

465960-0009

465960-0010

465960-0011

465960-0012

465960-0013

465960-0014

465970-0001

465970-0002

465970-0003

465970-0004

465970-0005

466013-0001

466058-0001

466058-0002

466060-0001

466122-0002

466122-0003

466128-0001

466162-0001

466210-0001

466210-0002

466222-0001

466384-0006

466394-0002

466438-0001

466457-0002

466457-0003

466533-0001

466573-0001

466590-0001

466608-0001

466608-0002

466608-0003

466608-0004

466608-0005

466828-0001

466828-0002

466828-0003

466828-0004

466828-0005

466828-0006

466828-0007

466828-0008

466828-0009

466828-0010

466828-0011

466897-0001

466904-0001

466904-0002

466904-0003

466904-0004

466904-0005

466904-0006

466904-0007

468411-0000

708106-0001

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED.
