Our NEW replacement bearing housings are cast in only the finest materials and are finished in OE specification. Unless stated, all housings are a direct replacement for the original.

Condition :             NEW

Brand:                   AFTERMARKET

OE Part Number : 313040

Quality:                  OE

Turbo Model:         Schwitzer

SPECIFICATIONS

A) Bearing Housing Hub (Turbine Side)                     =  66.7mm

B) Bearing Housing to Turbine Housing Flange         =  99.5mm

C) Compressor Wheel Recess                                   =  95.0mm

D) Bearing Housing To Compressor Housing Flange = 50.0mm

E) Bearing Housing Compressor Flange Step            = 55.4mm

F) Oil Inlet Style/Thead                                               =  M12 x 1.5

G) Oil Outlet Style/Thread                                           =  M16 x 1.5

H) Water Port Thread                                                  =  N/A

VNT Lever Position (if applicable)                               =  N/A

NOTES:

-

Turbochargers using this bearing housing include:

311612

312114

312436

312470

312490

312491

312511

312527

312934

312935

313034

313274

313360

313361

313363

313364

313365

313367

313368

313369

313511

313732

313733

313810

313818

313834

314223

314224

314225

314231

314328

314351

314352

314446

314464

314465

314466

314918

314988

314991

314992

314993

314995

315191

315192

315201

315208

315501

315502

315503

315639

315640

315641

315647

315666

315845

315846

315847

315848

315849

315850

315852

315853

315855

315856

315857

315858

315859

315860

315861

315862

315863

315864

315865

315867

315920

315921

316689

316690

316691

316692

317020

317047

317125

317126

317206

317901

317902

317904

317905

317906

317908

317909

317910

317959

317960

318189

318190

318195

319246

319247

319261

319338

Average dispatch: 24 Hours

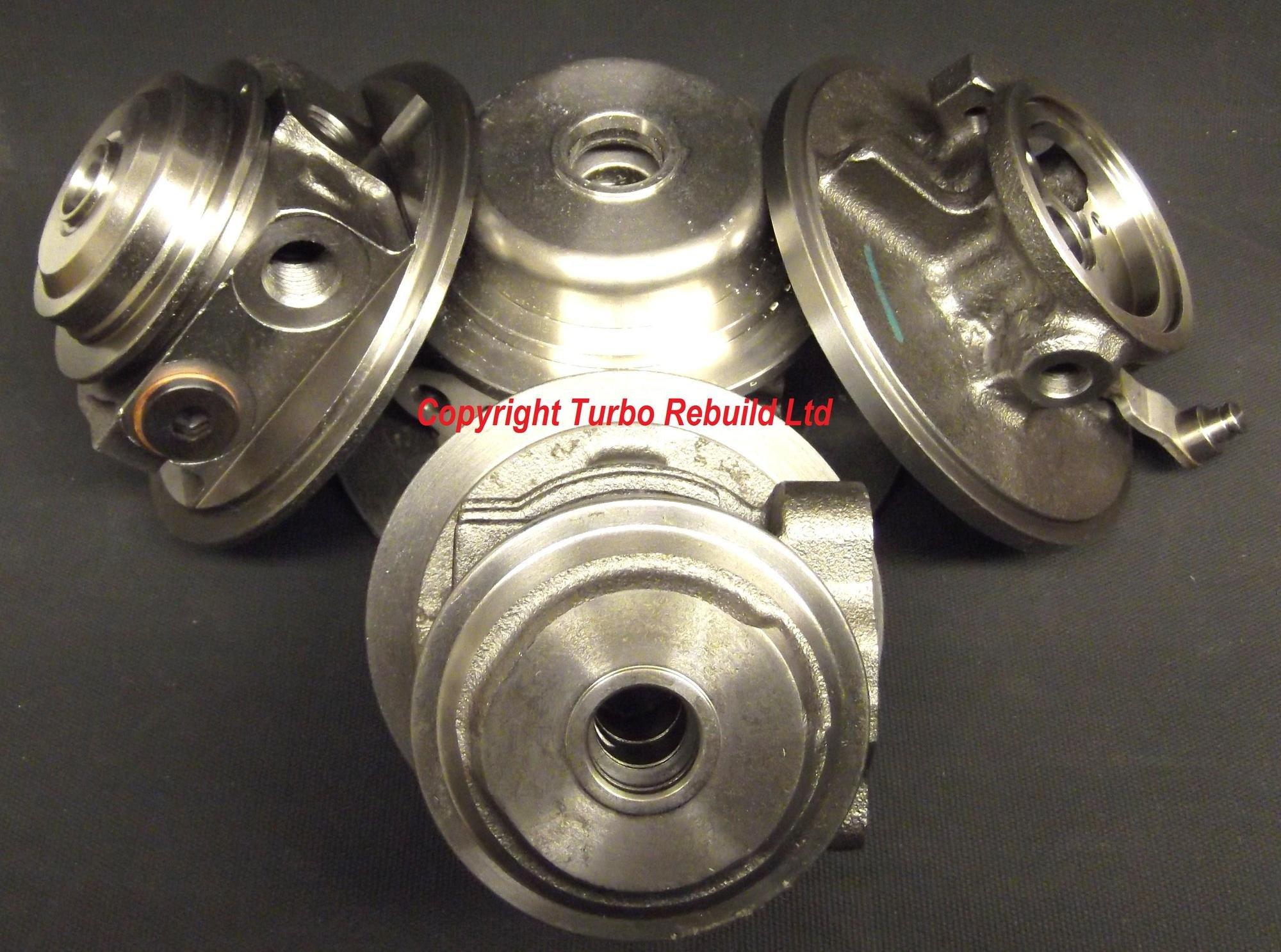

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
