REPLACES: TOYOTA CT10 N/A

BLADES CONFIGURATION: 6+6

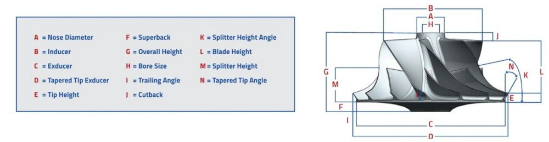

NOSE (A)(mm): 10.59

INDUCER (B)(mm): 36

EXDUCER (C)(mm): 50.96

EXTENDED TIP (D)(mm): 3.47

TIP HEIGHT (E)(mm): 3.47

SUPERBACK (F)(mm): 2.65

OVERALL HEIGHT (G)(mm): 25

BORE SIZE (H)(mm:) 5.1

ROTATION: Forward

BORE TYPE: Through

FITS ORIGINAL HOUSING: NO

MATERIAL: N/A

NOTES:
N/A
N/A
N/A

Fit Vehicles/Turbochargers: Toyota 2KD-FTV
