REPLACES: SCHWITZER S4T

BLADES CONFIGURATION: 7+7

NOSE (A)(mm): 27.8

INDUCER (B)(mm): 85.5

EXDUCER (C)(mm): 121.9

EXTENDED TIP (D)(mm): 12.41

TIP HEIGHT (E)(mm): 12.41

SUPERBACK (F)(mm): 10.28

OVERALL HEIGHT (G)(mm): 67.4

BORE SIZE (H)(mm:) 11.12

ROTATION: Forward

BORE TYPE: Through

FITS ORIGINAL HOUSING: YES

MATERIAL: N/A

NOTES:
N/A

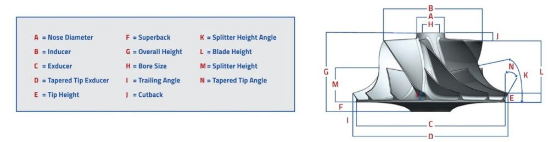

Sample Geometry
N/A

Fit Vehicles/Turbochargers: N/A
