REPLACES: SCHWITZER S4D 169413

BLADES CONFIGURATION: 7+7

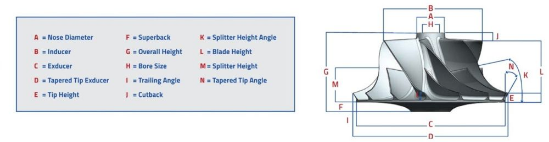

NOSE (A)(mm): 20.5

INDUCER (B)(mm): 75.15

EXDUCER (C)(mm): 98.99

EXTENDED TIP (D)(mm): 8.82

TIP HEIGHT (E)(mm): 8.82

SUPERBACK (F)(mm): 10.34

OVERALL HEIGHT (G)(mm): 55.2

BORE SIZE (H)(mm:) 9.52

ROTATION: Forward

BORE TYPE: Through

FITS ORIGINAL HOUSING: YES

MATERIAL: N/A

NOTES:
N/A
OE Geometry for durability, TA45
N/A

Fit Vehicles/Turbochargers: CAT 166095/167053/167056/199114/199119/199351/199515
