REPLACES: SCHWITZER S3B 170396

BLADES CONFIGURATION: 7+7

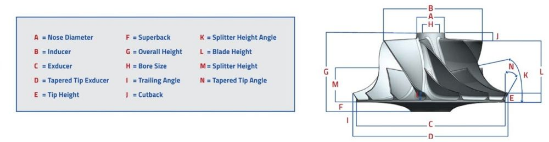

NOSE (A)(mm): 17.76

INDUCER (B)(mm): 64.39

EXDUCER (C)(mm): 88.31

EXTENDED TIP (D)(mm): 7.54

TIP HEIGHT (E)(mm): 7.54

SUPERBACK (F)(mm): 8.5

OVERALL HEIGHT (G)(mm): 49.535

BORE SIZE (H)(mm:) 7.94

ROTATION: Forward

BORE TYPE: Through

FITS ORIGINAL HOUSING: YES

MATERIAL: N/A

NOTES:
N/A
N/A
N/A

Fit Vehicles/Turbochargers: CAT 170377/167-9666/171368/185-5732/0R9959/S3BSL161
