REPLACES: SCHWITZER S300 315588

BLADES CONFIGURATION: 7+7

NOSE (A)(mm): 19.25

INDUCER (B)(mm): 61.45

EXDUCER (C)(mm): 87.38

EXTENDED TIP (D)(mm): 7.63

TIP HEIGHT (E)(mm): 7.63

SUPERBACK (F)(mm): 7.01

OVERALL HEIGHT (G)(mm): 49.05

BORE SIZE (H)(mm:) 8.01

ROTATION: Forward

BORE TYPE: Through

FITS ORIGINAL HOUSING: YES

MATERIAL: N/A

NOTES:
N/A

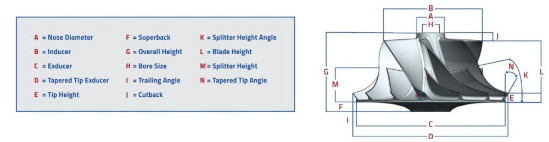

Sample Geometry
N/A

Fit Vehicles/Turbochargers: N/A N/A
