REPLACES: MITSUBISHI TD09 N/A

BLADES CONFIGURATION: 7+7

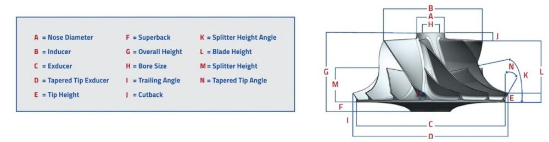

NOSE (A)(mm): 29.2

INDUCER (B)(mm): 87

EXDUCER (C)(mm): 120

EXTENDED TIP (D)(mm): 8.64

TIP HEIGHT (E)(mm): 8.64

SUPERBACK (F)(mm): 6.35

OVERALL HEIGHT (G)(mm): 56

BORE SIZE (H)(mm:) 9.12

ROTATION: Forward

BORE TYPE: Through

FITS ORIGINAL HOUSING: YES

MATERIAL: N/A

NOTES:
N/A
OE Geometry
45M

Fit Vehicles/Turbochargers: mitsubishi Heavy Industries 49132-03020
