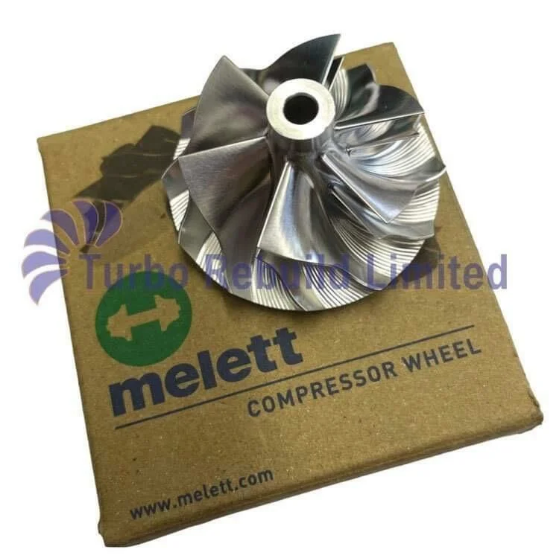

REPLACES: GARRETT T61 409033-0006

BLADES CONFIGURATION: 6+6

NOSE (A)(mm): 17.72

INDUCER (B)(mm): 62.43

EXDUCER (C)(mm): 86.36

EXTENDED TIP (D)(mm): 7.16

TIP HEIGHT (E)(mm): 7.16

SUPERBACK (F)(mm): 6.28

OVERALL HEIGHT (G)(mm): 43.68

BORE SIZE (H)(mm:) 7.95

ROTATION: Forward

BORE TYPE: Through

FITS ORIGINAL HOUSING: YES

MATERIAL: N/A

NOTES:
N/A
N/A
N/A

Fit Vehicles/Turbochargers: CAT 465584-0001/2/8N55100R5844/TL6137
