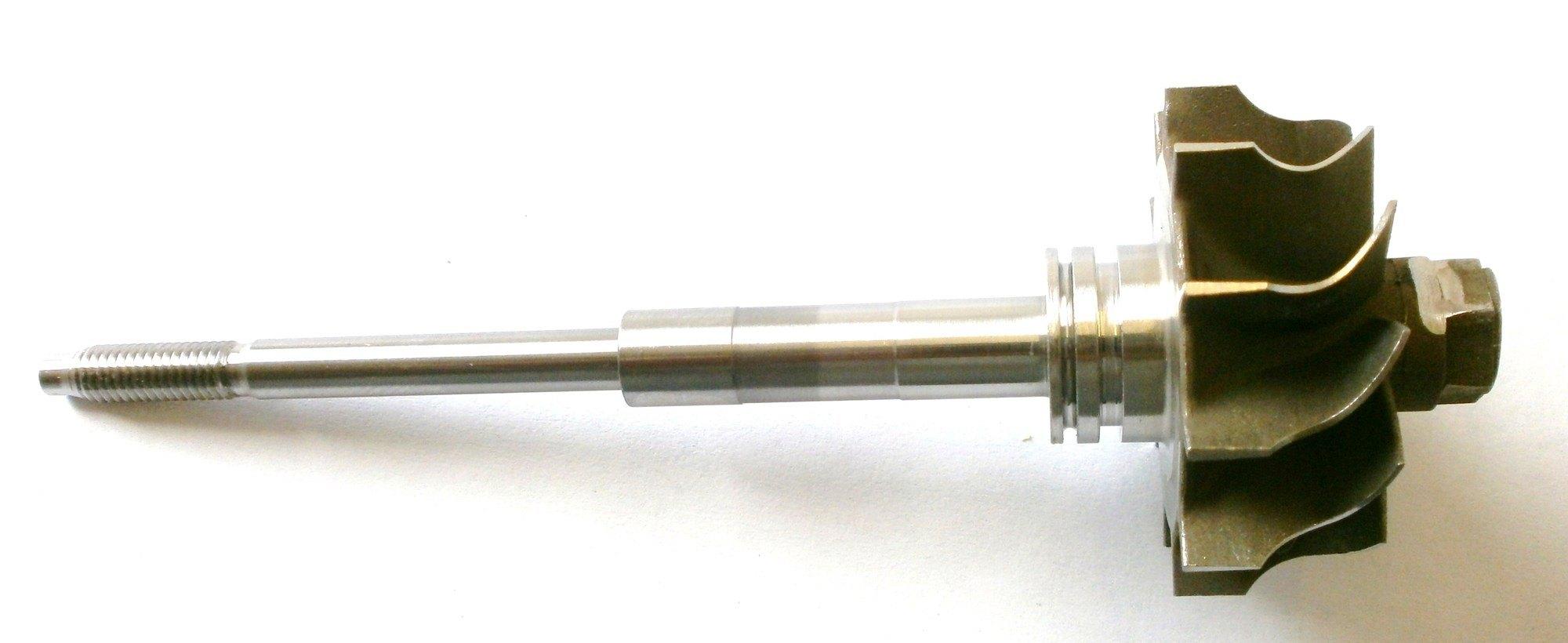

This is a BRAND NEW Turbocharger Turbine Shaft and Wheel.

This turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original.

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:    49178-30230

INDUCER DIAMETER (A):                         56mm

EXDUCER DIAMETER (B):                        49.1mm

TIP HEIGHT (C):                                         9.1mm

JOURNAL BEARING DIAMETER (D):        9mm

COMPRESSOR WHEEL BORE:                 6.5mm

BLADES:                                                      12

SLENDER/STRAIGHT SHAFT:                   Straight

BALANCED:                                                 YES

This turbo turbine shaft and wheel fits the following OE turbo part numbers:

49178-01010

49178-01030

49178-01300

49178-01400

49178-01410

49178-01420

49178-01450

49178-01460

49178-01470

49178-01750

49178-01760

49178-02123

49178-02130

49178-02135

49178-02136

49178-02150

49178-02155

49178-02170

49178-02190

49178-02300

49178-02315

49178-02325

49178-02335

49178-02385

49178-03200

49178-04310

49178-04330

49178-04340

49178-04400

49178-04410

49178-04500

49178-04510

49178-05200

49178-06200

49178-06290

49178-06300

49178-06310

49178-06380

49178-06390

49178-07200

49178-91450

49378-01642

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED.
