Our NEW replacement bearing housings are cast in only the finest materials and are finished in OE specification. Unless stated, all housings are a direct replacement for the original.

Condition :             NEW

Brand:                   AFTERMARKET

OE Part Number : UNKNOWN

Quality:                 OE

Turbo Model:        MITSUBISHI, TD02

SPECIFICATIONS

A) Bearing Housing Hub (Turbine Side)                     =  44.0mm

B) Bearing Housing to Turbine Housing Flange         =  56.0mm

C) Compressor Wheel Recess                                   =  41.0mm

D) Bearing Housing To Compressor Housing Flange =  69.8mm

E) Bearing Housing Compressor Flange Step            =  64.0mm

F) Oil Inlet Style/Thead                                               =  M10 x 1

G) Oil Outlet Style/Thread                                           =  2 - M6 x 1

H) Water Port Thread                                                  =  2 - M12 x 1.5

VNT Lever Position (if applicable)                               =  N/A

NOTES:

Watercooled

Turbochargers using this bearing housing include:

49172-04000

49172-04010

49172-04020

49173-07600

49173-07610

49173-07620

49173-07621

49173-07626

49373-03000

49373-03001

49373-03002

49373-03003

49373-03004

49373-03005

49373-03006

49373-03010

49373-03011

49373-03012

49373-04000

49373-04001

49373-04002

49373-04003

49373-05000

49373-05001

49373-05003

49373-05004

49373-05005

49373-05020

49373-05100

49373-05101

49373-05102

49373-05103

49373-05104

49373-05105

Average dispatch: 24 Hours

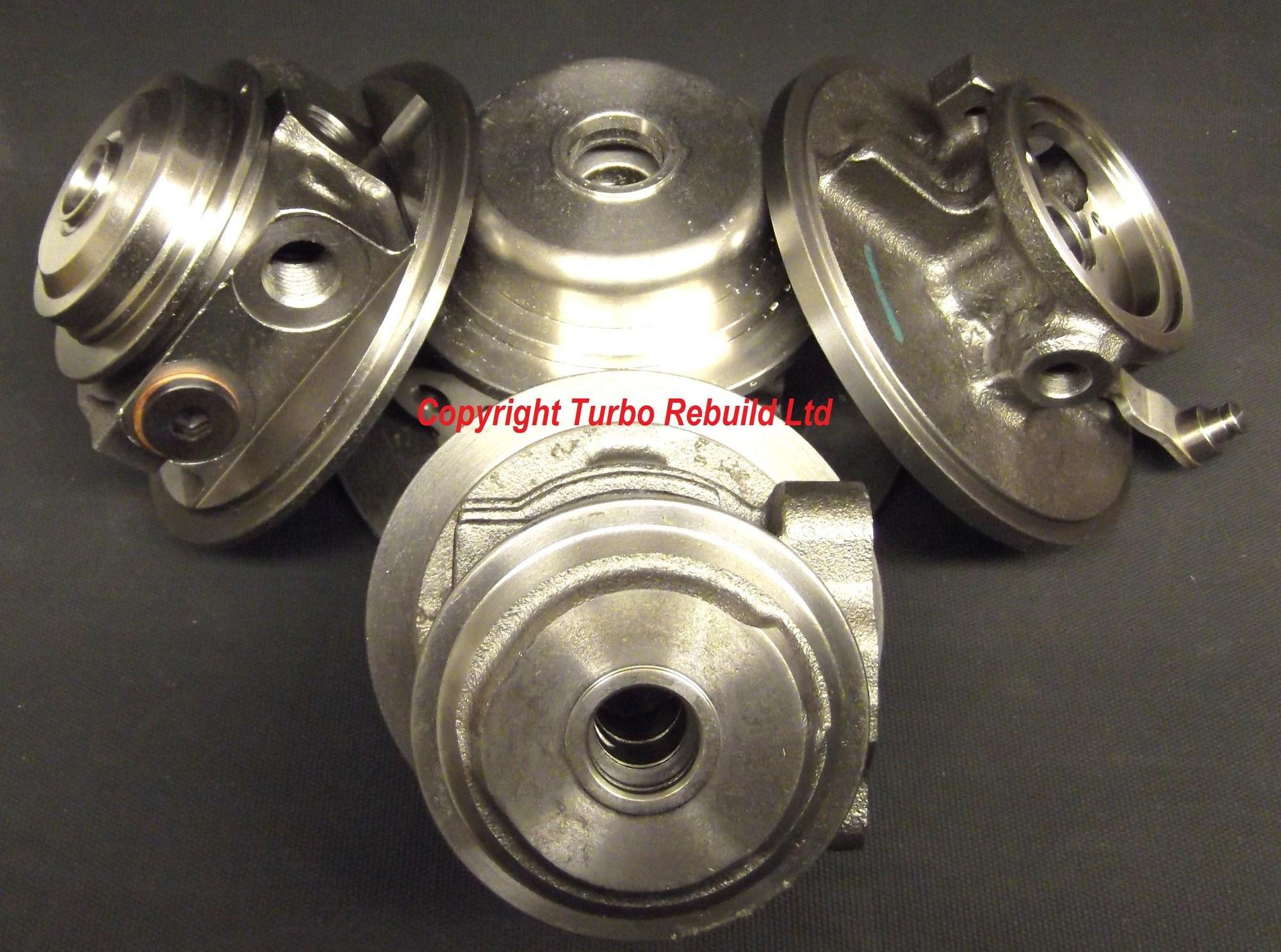

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
