Our NEW replacement bearing housings are cast in only the finest materials and are finished in OE specification. Unless stated, all housings are a direct replacement for the original.

Condition :             NEW

Brand:                   AFTERMARKET MELETT

OE Part Number : 5439-150-4502

Quality:                  OE

Turbo Model:         KKK, KP39

SPECIFICATIONS

A) Bearing Housing Hub (Turbine Side)                     =  53mm

B) Bearing Housing to Turbine Housing Flange         =  72mm

C) Compressor Wheel Recess                                   =  47mm

D) Bearing Housing To Compressor Housing Flange = 108mm

E) Bearing Housing Compressor Flange Step            = N/A

F) Oil Inlet Style/Thead                                               =  M10 x 1.0

G) Oil Outlet Style/Thread                                           = 2 - M6 x 1

H) Water Port Thread                                                  =  Watercooled

VNT Lever Position (if applicable)                               =  N/A

NOTES:

-

Turbochargers using this bearing housing include:

5439-970-0033

5439-970-0034

5439-970-0077

5439-970-0109

5439-970-0122

5439-970-0123

5439-970-0124

5439-970-0125

5439-970-0130

5439-970-0131

5439-970-0133

5439-970-0144

Average dispatch: 24 Hours

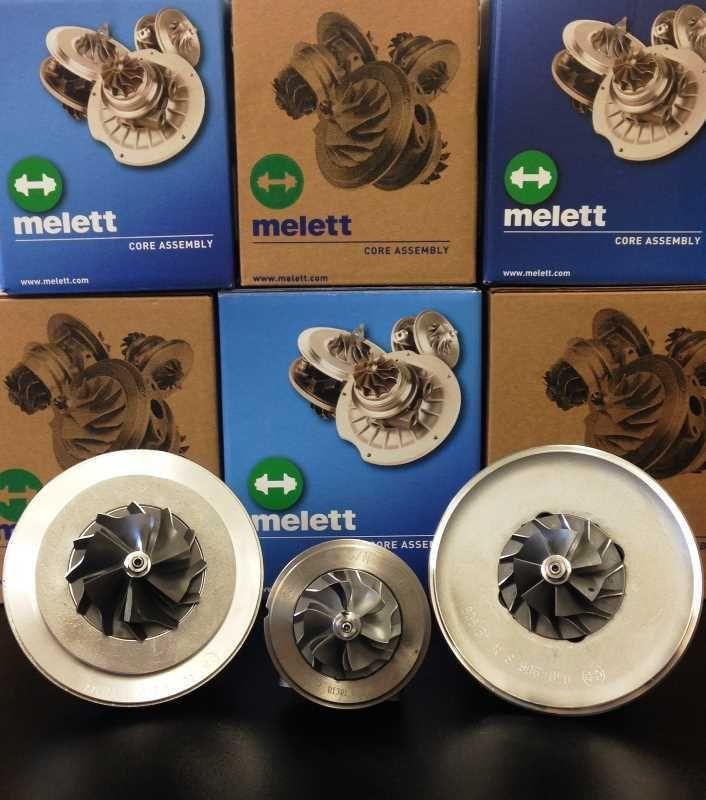

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
