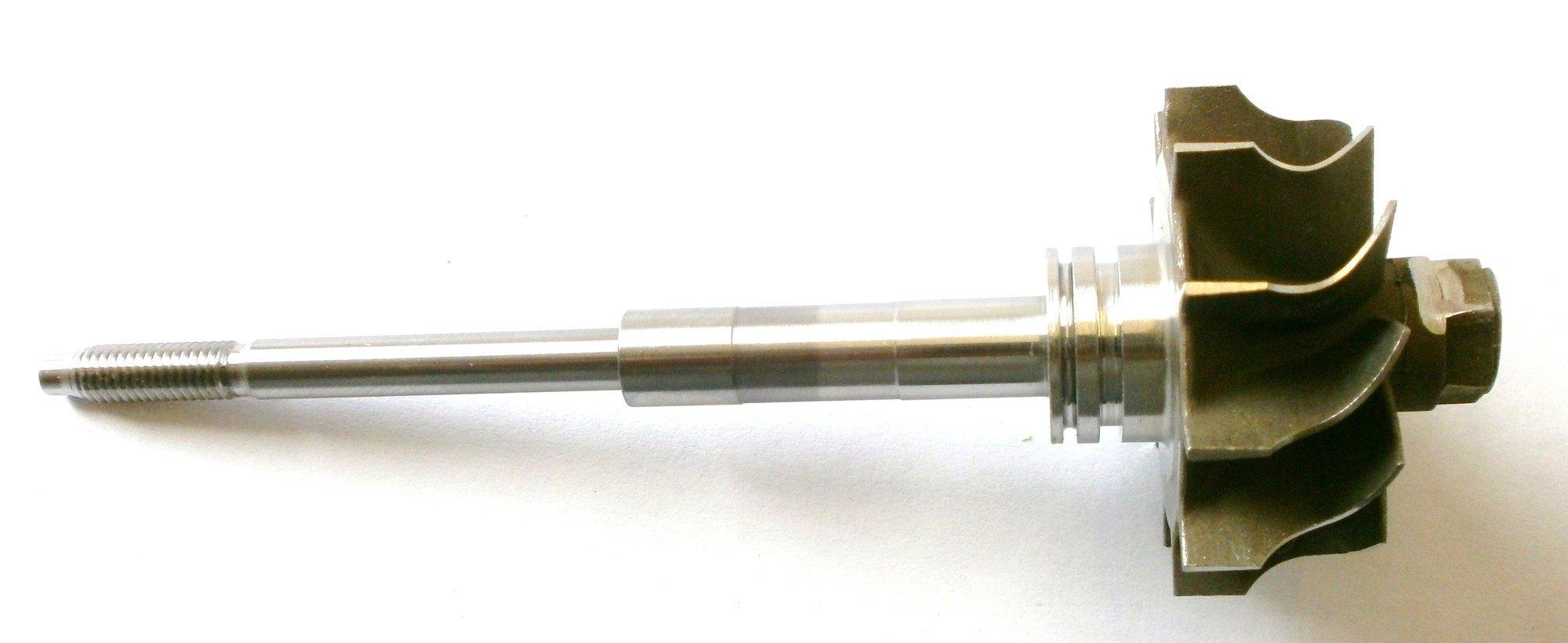

This is a BRAND NEW Turbocharger Turbine Shaft and Wheel.

This turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original.

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:    5316-120-2102 5316-120-5015 5316-120-5028 5316-120-5043

INDUCER DIAMETER (A):                         55.0mm

EXDUCER DIAMETER (B):                        46.2mm

TIP HEIGHT (C):                                         6.5mm

JOURNAL BEARING DIAMETER (D):        8.47mm

COMPRESSOR WHEEL BORE:                 5.4mm

BLADES:                                                      12

SLENDER/STRAIGHT SHAFT:                  Straight

BALANCED:                                                YES

This turbo turbine shaft and wheel fits the following OE turbo part numbers:

5316-970-0017

5316-970-0074

5316-970-6500

5316-970-6501

5316-970-6502

5316-970-6505

5316-970-6702

5316-970-6707

5316-970-6714

5316-970-6715

5316-970-6731

5316-970-6732

5316-970-6733

5316-970-6734

5316-970-6740

5316-970-6743

5316-970-7001

5316-970-7004

5316-970-7008

5316-970-7013

5316-970-7014

5316-970-7015

5316-970-7016

5316-970-7017

5316-970-7019

5316-970-7020

5316-970-7021

5316-970-7022

5316-970-7023

5316-970-7024

5316-970-7025

5316-970-7027

5316-970-7028

5316-970-7029

5316-970-7030

5316-970-7101

5316-970-7103

5316-970-7104

5316-970-7105

5316-970-7106

5316-970-7107

5316-970-7111

5316-970-7112

5316-970-7113

5316-970-7114

5316-970-7116

5316-970-7117

5316-970-7118

5316-970-7119

5316-970-7120

5316-970-7121

5316-970-7122

5316-970-7123

5316-970-7124

5316-970-7125

5316-970-7126

5316-970-7127

5316-970-7128

5316-970-7129

5316-970-7130

5316-970-7132

5316-970-7133

5316-970-7139

5316-970-7141

5316-970-7142

5316-970-7143

5316-970-7145

5316-970-7155

5316-970-7156

5316-970-7158

5316-970-7159

5316-970-7167

5316-971-6501

5316-971-7017

5316-971-7023

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED.
