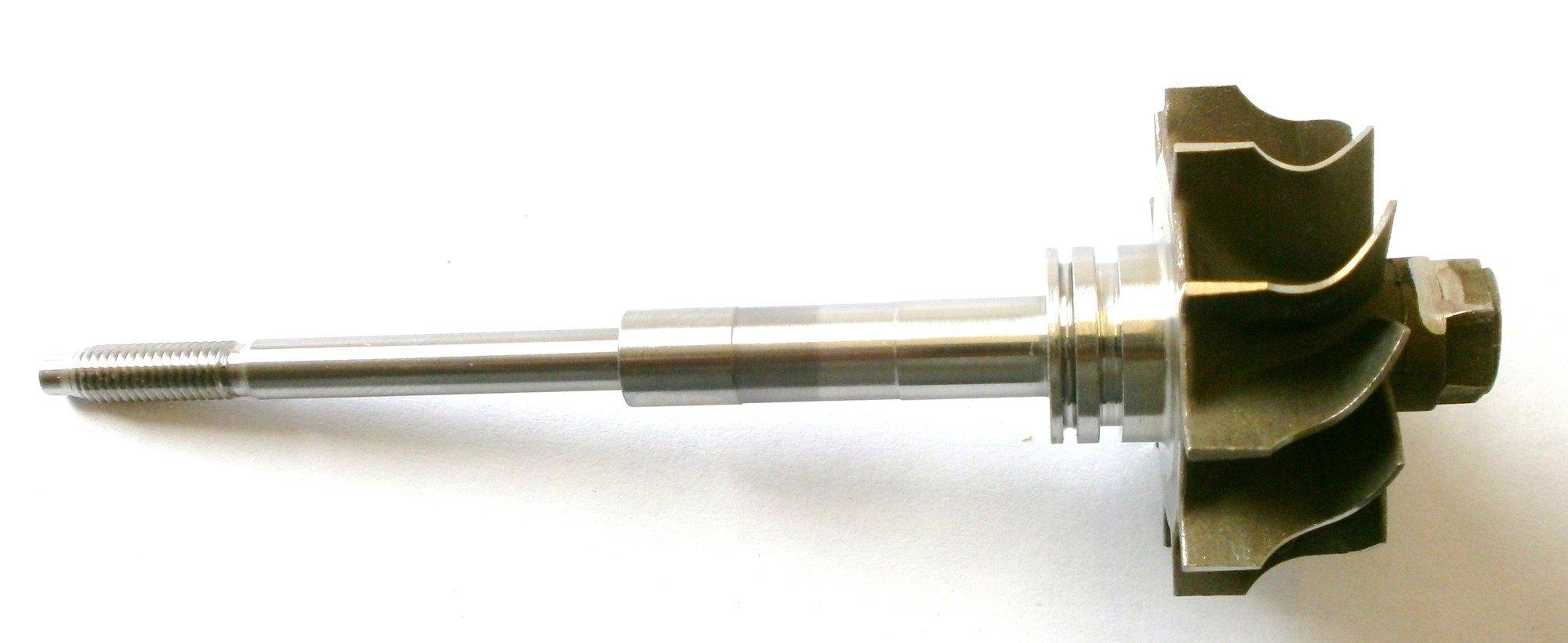

This is a BRAND NEW Turbocharger turbine shaft and wheel.

This turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original.

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:   5314-120-2104 5314-120-2105 5314-120-2114 5314-120-2115 5314-120-5006

INDUCER DIAMETER (A):                         50.0mm

EXDUCER DIAMETER (B):                        42.0mm

TIP HEIGHT (C):                                         5.9mm

JOURNAL BEARING DIAMETER (D):        8.47mm

COMPRESSOR WHEEL BORE:                 5.4mm

BLADES:                                                      12

SLENDER/STRAIGHT SHAFT:                  Straight

BALANCED:                                                YES

This turbo turbine shaft and wheel fits the following OE turbo part numbers:

5314-970-6400

5314-970-6401

5314-970-6416

5314-970-6417

5314-970-6444

5314-970-6445

5314-970-6703

5314-970-6704

5314-970-6706

5314-970-6707

5314-970-6708

5314-970-6709

5314-970-7001

5314-970-7002

5314-970-7003

5314-970-7004

5314-970-7005

5314-970-7006

5314-970-7010

5314-970-7011

5314-970-7012

5314-970-7013

5314-970-7015

5314-970-7016

5314-970-7019

5314-970-7020

5314-970-7021

5314-970-7023

5314-970-7024

5314-970-7025

5314-970-7027

5316-970-6723

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
