KKK K03 K04 Turbo Bearing Housing (replaces 5304-150-0006 5304-150-0009)



  • Description - PLEASE ENSURE YOU MATCH FROM YOUR PART NUMBER (DO NOT USE FRAME SIZE I.E. GTB22, K03, RHF5, TD04)

    Our NEW replacement bearing housings are cast in only the finest materials and are finished in OE specification. Unless stated, all housings are a direct replacement for the original.



    Condition :             NEW

    Brand:                   AFTERMARKET

    OE Part Number : 5304-150-0006 5304-150-0009

    Quality:                  OE

    Turbo Model:          KKK



    SPECIFICATIONS

    A) Bearing Housing Hub (Turbine Side)                     =  48.0mm

    B) Bearing Housing to Turbine Housing Flange         =  62.0mm

    C) Compressor Wheel Recess                                   =  N/A

    D) Bearing Housing To Compressor Housing Flange = 113.0mm

    E) Bearing Housing Compressor Flange Step            = N/A

    F) Oil Inlet Style/Thead                                               =  M12 x 1.5

    G) Oil Outlet Style/Thread                                           = 2 - M6 x 1

    H) Water Port Thread                                                  = M14 x 1.5

    VNT Lever Position (if applicable)                               = N/A

    NOTES:

     W/Cooled, Single Oil Brg, replaces 5304-150-6/9

    Turbochargers using this bearing housing include:

    5303-970-0005

    5303-970-0011

    5303-970-0016

    5303-970-0017

    5303-970-0022

    5303-970-0025

    5303-970-0026

    5303-970-0029

    5303-970-0035

    5303-970-0044

    5303-970-0045

    5303-970-0049

    5303-970-0052

    5303-970-0053

    5303-970-0058

    5303-970-0069

    5303-970-0070

    5303-970-0073

    5303-970-0082

    5304-950-0001

    5304-970-0015

    5304-970-0020

    5304-970-0022

    5304-970-0023

    5304-970-0024

    5304-970-0025

    5304-970-0026

    5304-970-0028

    5304-970-0029







    Average dispatch: 24 Hours

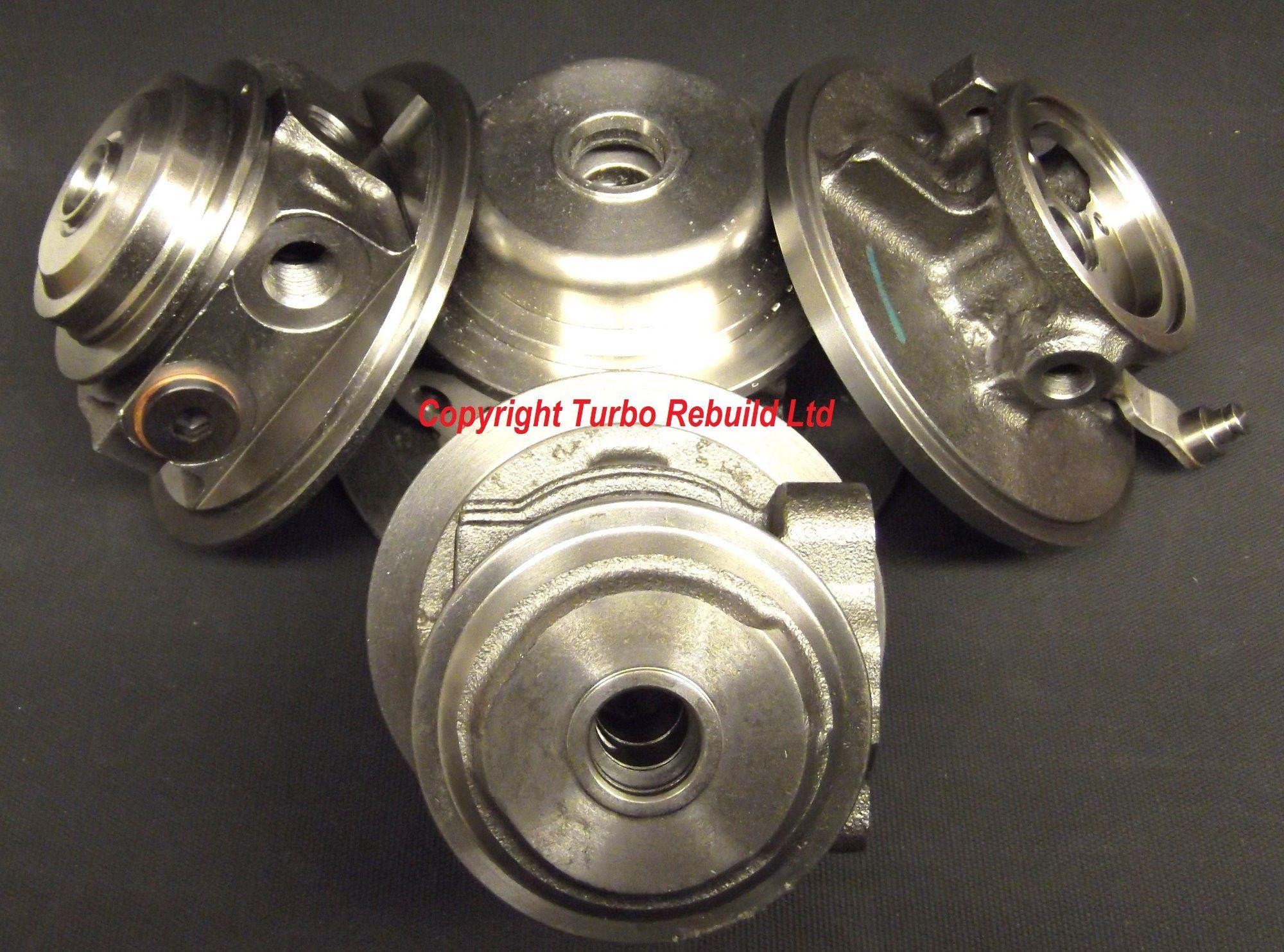

    **PHOTO FOR ILLUSTRATION PURPOSES ONLY**

    THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

    ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
