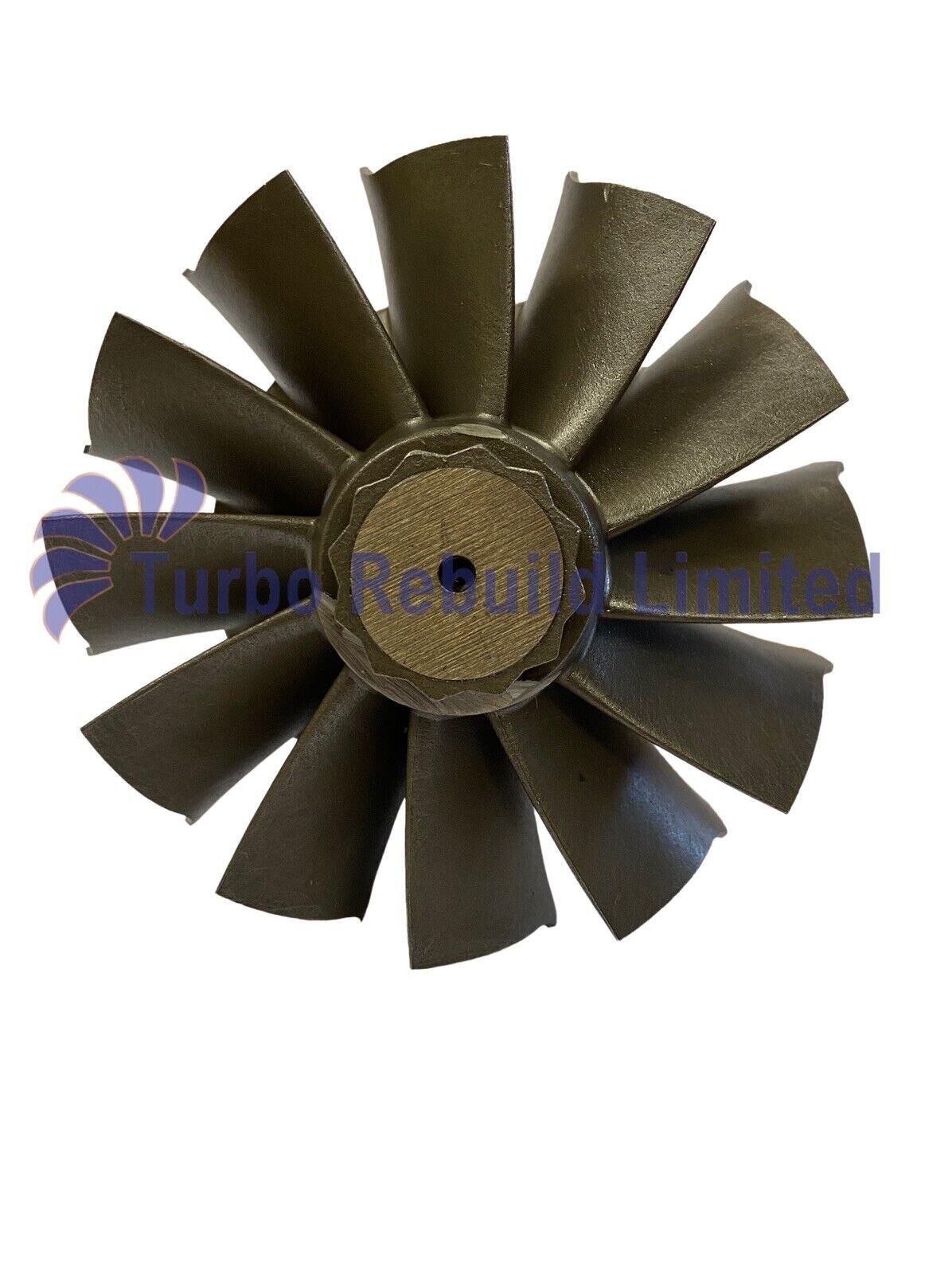

HX60 Turbocharger Turbine Shaft and Wheel 97mm / 92mm (3532197)



  • Description - PLEASE ENSURE YOU MATCH FROM YOUR PART NUMBER (DO NOT USE FRAME SIZE I.E. GTB22, K03, RHF5, TD04)

    This is a BRAND NEW Turbocharger turbine shaft and wheel.

    This turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original.

    BRAND:    AFTERMARKET

    QUALITY: OE

    OE SHAFT & WHEEL NUMBER: 3532197

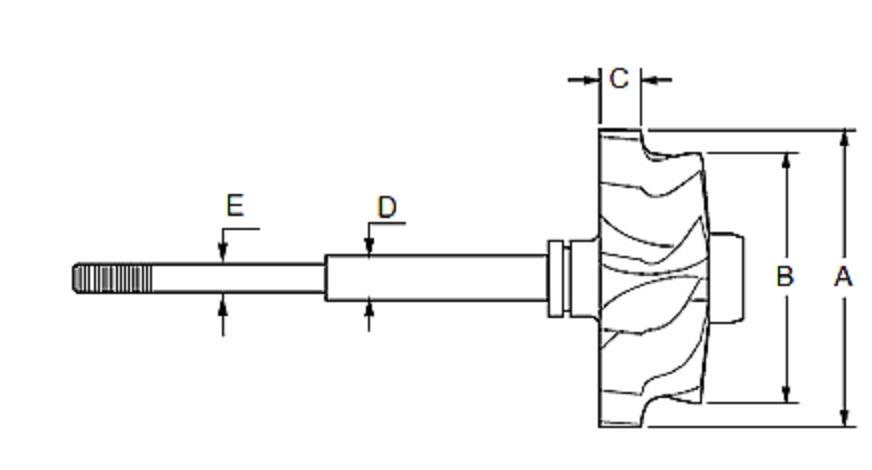

    INDUCER DIAMETER (A): 97mm

    EXDUCER DIAMETER (B): 92mm

    TIP HEIGHT (C): 17.05mm

    JOURNAL BEARING DIAMETER (D): 14.3mm

    COMPRESSOR WHEEL BORE: 11.2mm

    BLADES: 12

    SLENDER/STRAIGHT SHAFT: Straight

    PISTON RING:                          Twin Piston Ring

    BACK FACE TYPE:                   Open

    BALANCED: Yes



    This turbo turbine shaft and wheel fits the following OE turbo part numbers:

    HX60


    3599868


    3777259


    3593249


    3538772


    4036360


    3599293


    4042692


    3536936


    3591830


    3536184


    3592350


    3534713



    Average dispatch: 24 Hours

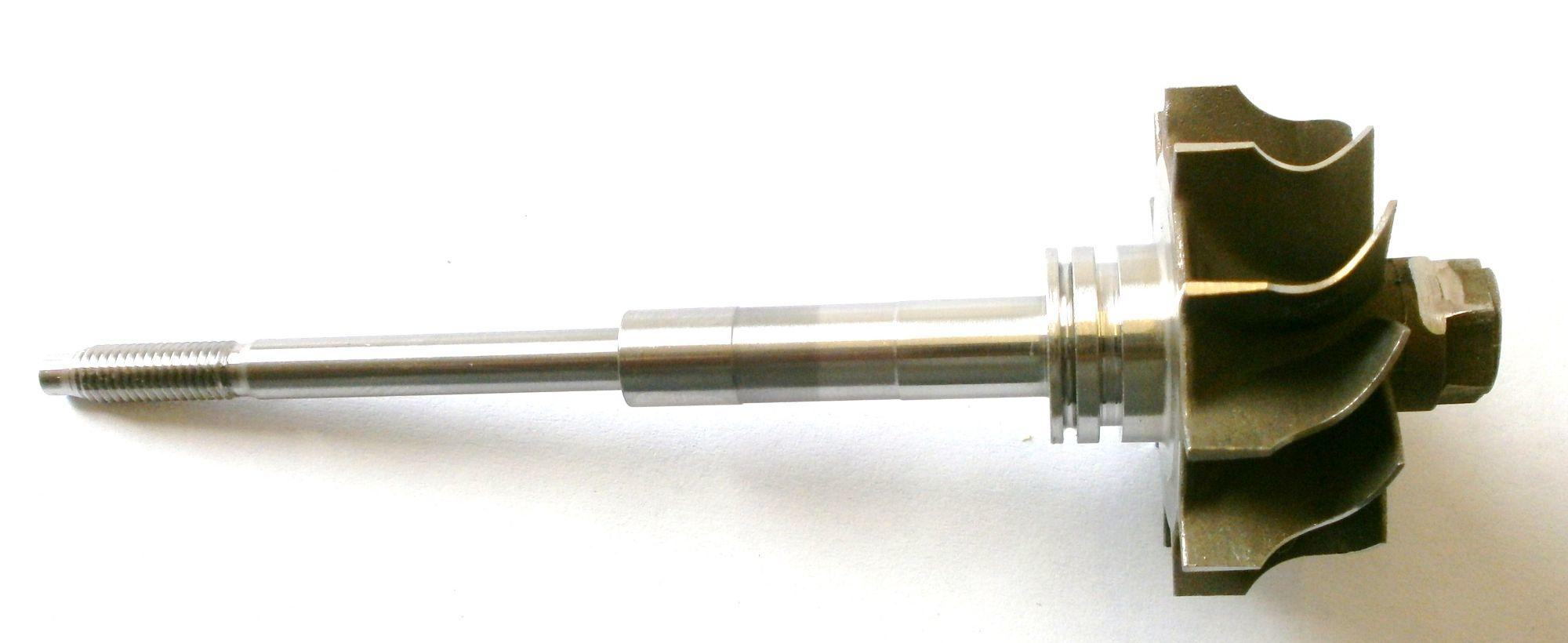

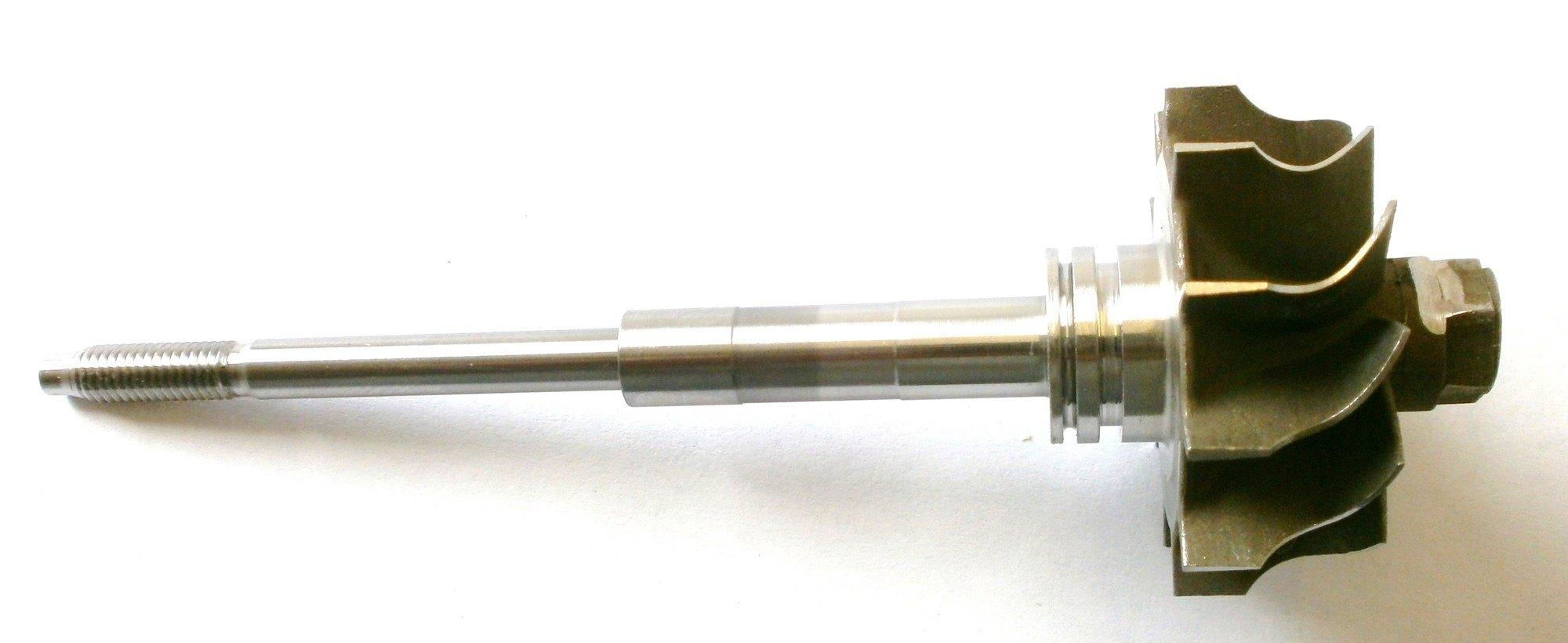

    **PHOTO FOR ILLUSTRATION PURPOSES ONLY**

    THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

    ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED.
