Our NEW replacement bearing housings are cast in only the finest materials and are finished in OE specification. Unless stated, all housings are a direct replacement for the original.

Condition:              NEW

Brand:                   AFTERMARKET

OE Part Number:  49189-09740

Quality:                  OE

Turbo Model:         Holset, HE221W

SPECIFICATIONS

A) Bearing Housing Hub (Turbine Side)                     = 48.6mm

B) Bearing Housing to Turbine Housing Flange         = 69.9mm

C) Compressor Wheel Recess                                   = 40mm

D) Bearing Housing To Compressor Housing Flange = 79.9mm

E) Bearing Housing Compressor Flange Step            = 87.9mm

F) Oil Inlet Style/Thead                                               =  M10 x 1.25

G) Oil Outlet Style/Thread                                           = 2 - M6 x 1.0

H) Water Port Thread                                                  = N/A

VNT Lever Position (if applicable)                               = N/A

NOTES:

Turbochargers using this bearing housing include:

2834301

2834302

2835140

2835141

2835142

2835143

2835144

2835809

2835810

2835811

2835812

2837266

2837275

2839948

2839949

2839950

2839951

2840744

2840745

2840819

2840820

2841503

2841504

2843297

2843381

4033243

4033249

4033254

4038928

4038929

4040203

4040204

4040205

4040206

4040207

4040208

4040209

4040374

4040375

4040378

4040379

4040552

4040553

4040554

4040555

4040556

4040557

4040558

4040559

4040560

4040561

4040562

4040563

4040564

4040565

4040566

4040567

4040568

4040569

4040570

4040571

4040572

4040573

4040574

4040575

4041230

4041552

4041553

4041554

4041555

4041556

4041557

4042714

4042715

4042716

4042717

4042718

4042719

4042720

4042721

4042722

4042723

4042764

4042765

4042774

4042775

4043278

4043282

4043944

4043945

4043946

4043947

4043948

4043949

4043950

4043951

4043952

4043953

4043971

4043972

4043974

4043975

4043976

4043978

4044884

4044885

4044886

4044887

4044888

4044889

4045117

4045305

4045522

4045564

4045677

4045678

4045957

4045958

4046250

4046251

4047104

4047105

4047743

4047744

4047745

4047746

4047747

4047748

4047749

4047750

4047751

4047752

4047753

4047754

Average dispatch: 24 Hours

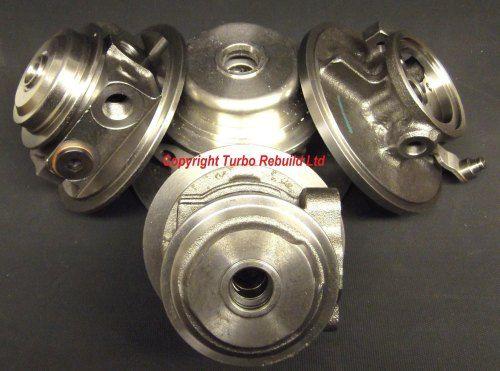

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED.
