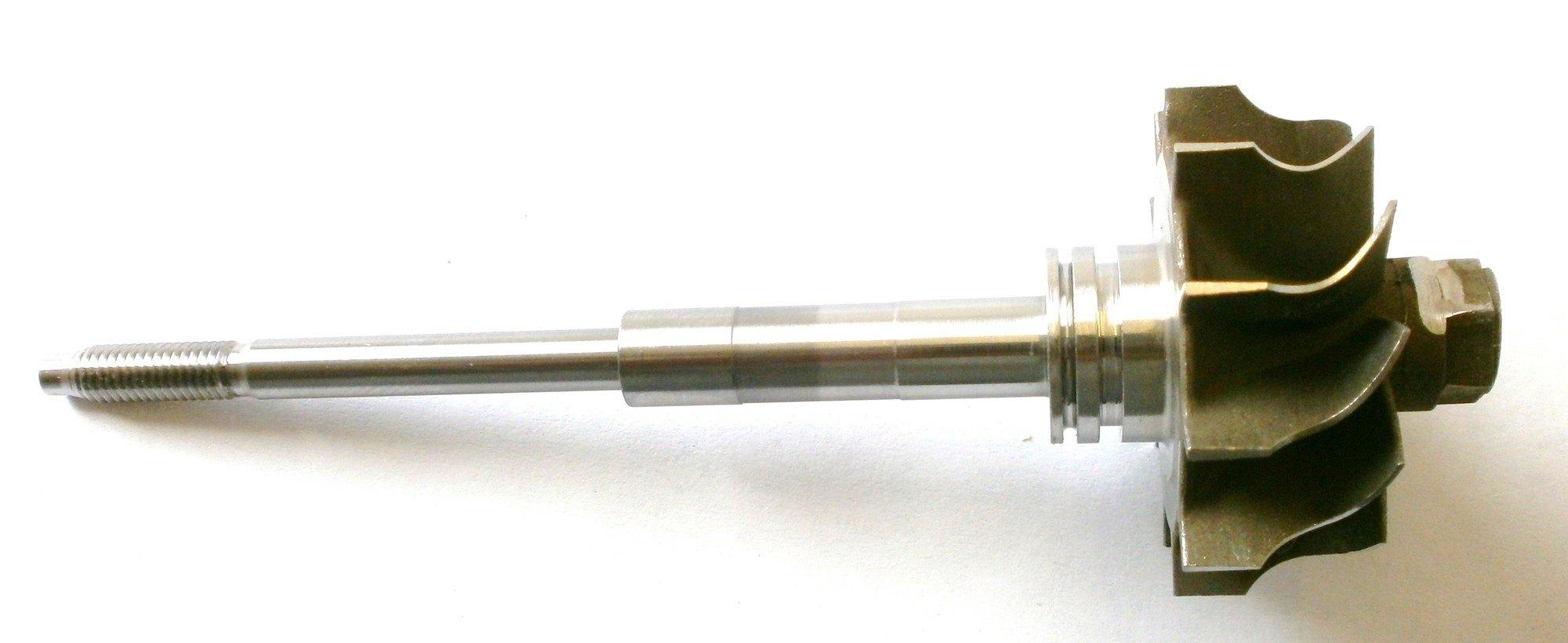

This is a BRAND NEW Turbocharger Turbine Shaft and Wheel.

This turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original.

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER: 434533-0007 434533-0009 434533-0015 434533-0035 434533-0037 434533-0058 434533-0059

INDUCER DIAMETER (A):                         43.1mm

EXDUCER DIAMETER (B):                        36.0mm

TIP HEIGHT (C):                                         6.3mm

JOURNAL BEARING DIAMETER (D):        7.88mm

COMPRESSOR WHEEL BORE:                5.08mm

BLADES:                                                      9

SLENDER/STRAIGHT SHAFT:                 Slender

BALANCED:                                                YES

This turbo turbine shaft and wheel fits the following OE turbo part numbers::

454183-0004

454183-0005

454231-0002

454231-0009

454232-0002

454232-0003

454232-0006

454232-0008

454232-0010

454232-0011

454232-0014

701470-0003

701470-0004

701854-0002

701855-0002

701855-0004

701855-0005

701855-0006

701855-0007

701855-0008

704505-0001

712077-0001

712078-0001

712968-0001

712968-0002

712968-0003

712968-0004

712968-0005

712968-0006

712968-0007

713673-0001

713673-0002

713673-0003

713673-0004

713673-0005

713673-0006

713673-0007

713673-0008

713673-0009

714485-0001

714485-0002

714485-0005

714485-0006

714485-0008

714486-0001

714486-0002

714486-0005

714486-0006

714486-0008

716215-0001

716216-0001

716219-0002

716219-0003

716860-0001

716860-0002

716860-0003

716860-0004

716860-0005

717858-0001

717858-0002

717858-0003

717858-0004

717858-0005

717858-0006

717858-0007

717858-0008

717858-0009

717858-0010

717858-0011

720855-0001

720855-0002

720855-0003

720855-0004

720855-0005

720855-0006

720855-0007

721164-0003

721164-0004

721164-0005

721164-0009

721164-0010

721164-0011

721164-0012

721164-0013

721164-0014

722730-0001

722730-0002

722730-0003

722730-0004

722730-0005

724930-0002

724930-0004

724930-0006

724930-0008

724930-0009

724930-0010

724930-0012

725864-0001

725864-0002

727210-0001

727210-0003

729041-0009

740911-0001

740911-0003

740911-0006

740911-0007

756062-0001

756062-0002

756062-0003

756062-0004

801891-0001

801891-0002

801891-0003

801891-0004

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED.
