Our NEW replacement bearing housings are cast in only the finest materials and are finished in OE specification. Unless stated, all housings are a direct replacement for the original.

Condition :             NEW

Brand:                   AFTERMARKET

OE Part Number : UNKNOWN

Quality:                  OE

Turbo Model:         GARRETT, GTB1752V /GTB1749V

SPECIFICATIONS

A) Bearing Housing Hub (Turbine Side)                     = 47.5mm

B) Bearing Housing to Turbine Housing Flange         = 123.3mm

C) Compressor Wheel Recess                                   =  N/A

D) Bearing Housing To Compressor Housing Flange = N/A

E) Bearing Housing Compressor Flange Step            = N/A

F) Oil Inlet Style/Thead                                               =  M12 X 1.0

G) Oil Outlet Style/Thread                                           =  N/A

H) Water Port Thread                                                  =  N/A

VNT Lever Position (if applicable)                               =  1

NOTES:

-

Turbochargers using this bearing housing include:

760698-0002

760698-0003

760698-0004

760698-0005

760698-0006

760699-0002

760699-0003

760698-0004

Average dispatch: 24 Hours

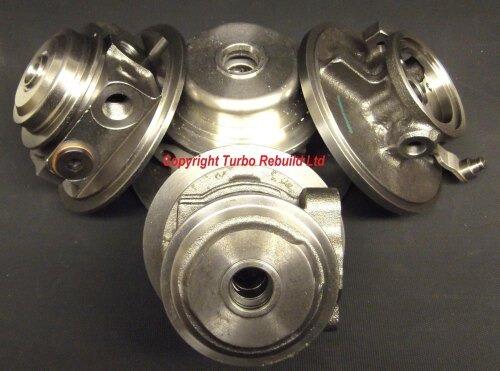

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
