Our NEW replacement bearing housings are cast in only the finest materials and are finished in OE specification. Unless stated, all housings are a direct replacement for the original.

Condition:              NEW

Brand:                    AFTERMARKET

OE Part Number:  UNKNOWN

Quality:                   OE

Turbo Model:          GARRETT

SPECIFICATIONS

A) Bearing Housing Hub (Turbine Side) = 49mm

B) Bearing Housing to Turbine Housing Flange = 68mm

C) Compressor Wheel Recess = 53.2mm

D) Bearing Housing To Compressor Housing Flange = N/A

E) Bearing Housing Compressor Flange Step = N/A

F) Oil Inlet Style/Thead = M10 x 1

G) Oil Outlet Style/Thread = 16.00mm + 2 - M6 x 1

H) Water Port Thread = N/A

VNT Lever Position (if applicable) = N/A

NOTES:

 -

Turbochargers using this bearing housing include:

711736-0023

711736-0025

711736-0028

711736-0029

711736-0030

711736-0031

738233-0001

785827-0007

785827-0008

785827-0009

785827-0010

785827-0012

785827-0013

785827-0014

785827-0015

785827-0017

785827-0022

785827-0023

785827-0024

785827-0025

785827-0027

785827-0028

785827-0029

785827-0030

785827-0031

Various     Various

Various     Construction

Various     Genset

Various     Backhoe Loader

Various     Forklift Trucks

Various     Towing Tractors

Various     Tractors Wheeled

Average dispatch: 24 Hours

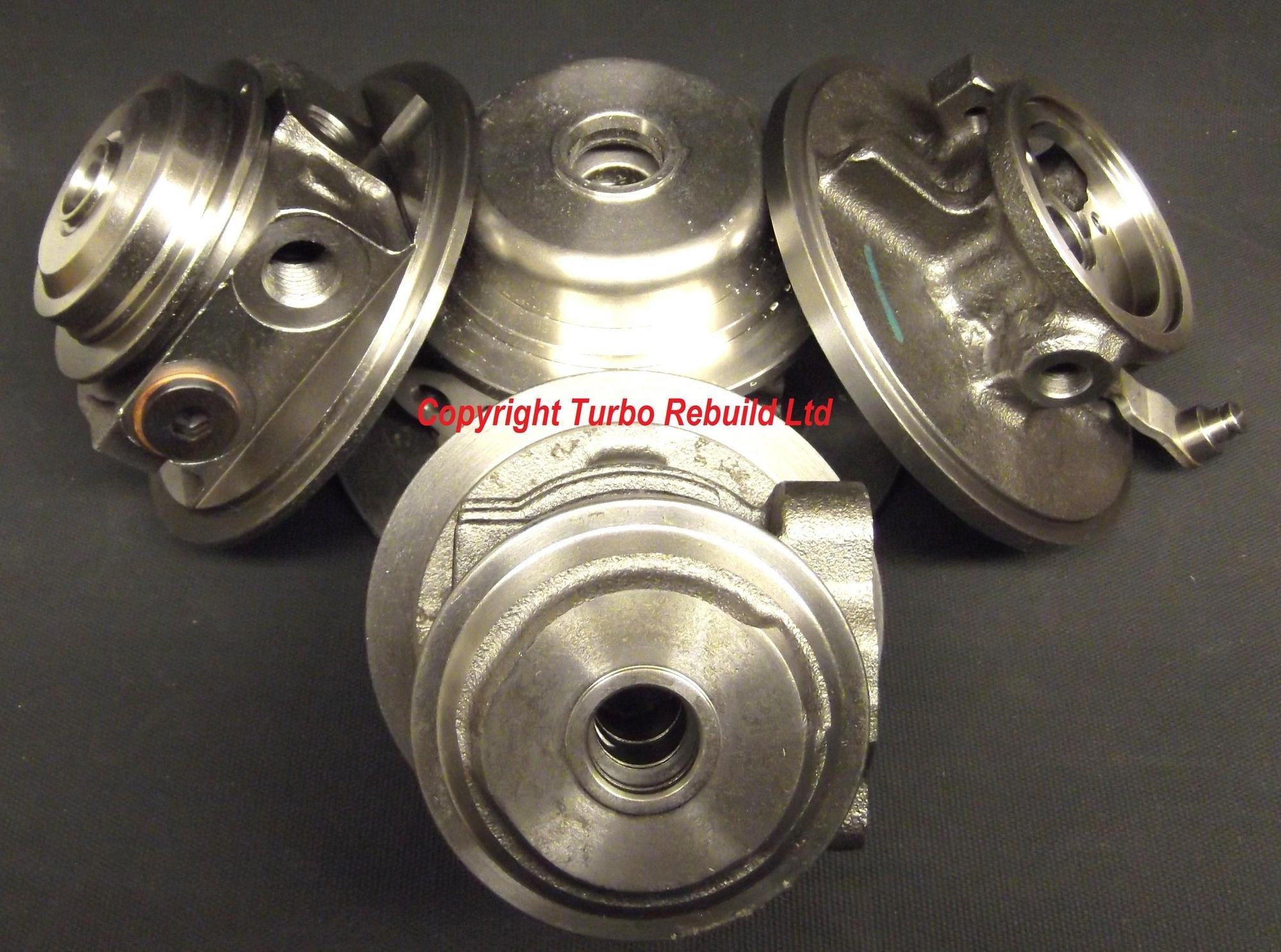

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
