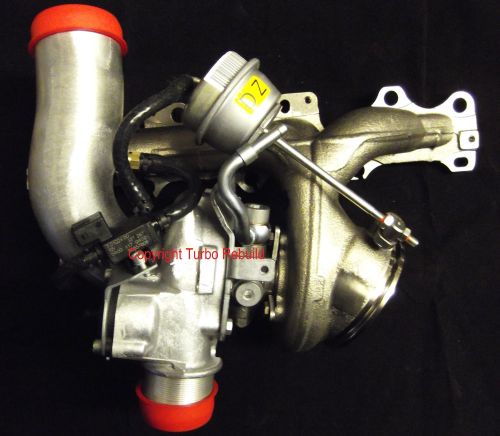

This genuine BRAND NEW OE turbocharger has been modified to produce the K06 Billet Hybrid Turbo.
This listing is for a BRAND NEW Stage 3 K06 Hybrid Turbo to fit the 2.0l Turbo Vauxhall Engines (Z20LEH, Z20LET, Z20LEL) which has been upgraded from a Standard Genuine OE Brand New Turbocharger.
This unit begins life as a GENUINE OE Astra VXR Turbocharger which comes direct from the OE Manufacturer. Upon arrival, the unit is stripped by one of our in-house technicians before the upgrades begin.
The bearing system is fully upgraded with our large pad thrust assembly. This is over 20% larger than the original and has enlarged oil galleries to support the extra load in tuned applications.
For applications where vehicles have had decat fitted or full aftermarket exhausts fitted, we upgrade the rear oil seal to a "Total Closure" style seal which prevents oil blow by in high boost applications.
The Compressor wheel is replaced with our Huge 65mm 11 blade GTX style billet lightweight performance wheel. With a super small nose, and extended tips, this wheel maximises the airflow to give the most power possible.
The Turbine wheel is replaced with our Hi-Flow 9 blade option. This wheel is designed in house and is taller than the original and also made to reduce excessive back pressure which on this application is a big issue due to the restrictive manifold. To ensure the highest possible flow potential, the turbine blades are also cut back resulting in the highest flowing turbine on the market
The Turbo CHRA once built is precision balanced to Motorsport tolerances far stricter than the OE unit to ensure the most reliable hybrid on the market.
Finally the compressor housing is professionally CNC machined to accept the larger compressor wheel.
Standard Recirc Valve (Upgrade option available £120)
Standard Actuator (Upgrade option available £130)
Multi layer Manifold Gasket
Oil Drain Gasket
NOTE: Although this unit is a direct fit to the Z20LEH, Z20LET and Z20LER engines fitted in the VXR and GSi Astra, Zafira and Coupe, you MUST have the engine remapped professionally to ensure the vehicle is fuelling correctly. If this is not undertaken your engine will run lean causing damage to turbocharger and/or engine.
