Turbo Repair Rebuild Service Repair Kit Garrett GT1544v Turbocharger 1.6hdi, 1.6tdci 109BHP

This PROFESSIONAL standard turbo rebuild kit is made with the finest materials and designed to match or exceed the original equipment.

BRAND:         AFTERMARKET

CONDITION: NEW BOXED

FITS:              GARRETT GT14, GT15, GT17, GT18, GT20, GT22, GT25

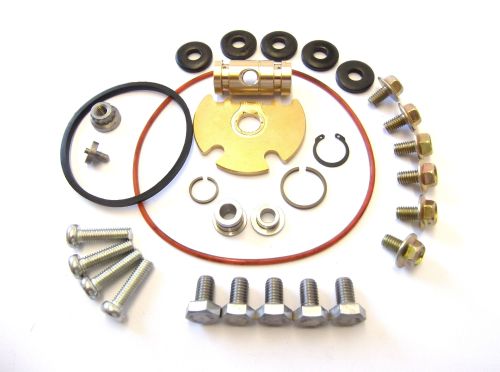

CONTENTS:

1 x Thrust Bearing (Low Friction Thrust)

1 x Journal Bearing (Standard 6.5mm Journal)

1 x Journal Retaining Ring (Circlip)

4 x Seal Plate Bolts

1 x Thrust Collar

1 x Thrust Washer

1 x Anti Rotation Pin

1 x Front Oil Seal (Piston Ring)

1 x Rear Oil Seal (Piston Ring)

1 x Bearing Housing O Ring

1 x Compressor Housing O Ring (GT1544v)

1 x Left Hand Shaft Nut

6 x Compressor Bolts

5 x Turbine Bolts

5 x Turbine Washers

WARNING

The 1.6 diesel engine has issues with carbon build up which cause lack of oil to the turbocharger, resulting in premature failure. Detailed and extensive work must be undertaken to prevent repeat failure. Contact us for more details.

All turbocharger manufacturers names, logos and part numbers are for identification purposes and cross referencing only and do not imply the part is a genuine part made by said manufacturer unless specifically stated.  Although we make every effort to ensure all information is correct, we cannot be held responsible for errors and advise you ensure part is correct for your needs.
