K03/K04 KKK Turbo Sealplate/Backplate (replaces 5304-151-5714)

This is a BRAND NEW Turbocharger Seal Plate / Back Plate

The Turbo seal plate/back plate is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:                                                                           AFTERMARKET

QUALITY :                                                                       OE

OE SEAL PLATE NUMBER:                                           5304-151-5714

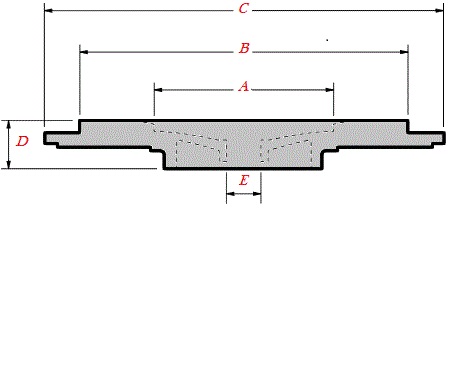

COMPRESSOR RECESS (A):                                        52.20mm

COMPRESSOR HOUSING LOCATING FLANGE (B):   90.30mm

SEAL PLATE OD (C):                                                     110.90mm

TOTAL HEIGHT (D):                                                       16.75mm

THRUST COLLAR BORE (E):                                        10.00mm

This turbo seal plate fits the following OE turbo part numbers

5303-970-0048

5304-970-0057

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
