KP39 BV39 BV40 KKK Turbo Sealplate/Backplate (replaces 5443-152-3005)

This is a BRAND NEW Turbocharger Seal Plate / Back Plate

The Turbo seal plate/back plate is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:                                                                           AFTERMARKET

QUALITY :                                                                       OE

OE SEAL PLATE NUMBER:                                           5443-152-3005

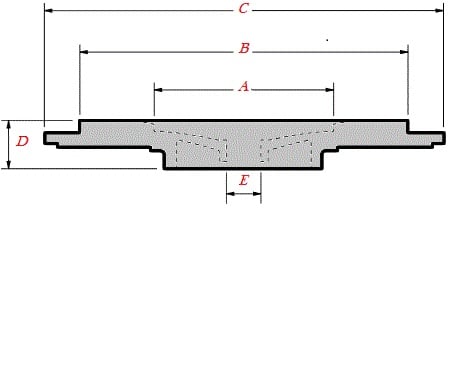

COMPRESSOR RECESS (A):                                        46mm

COMPRESSOR HOUSING LOCATING FLANGE (B):    N/A

SEAL PLATE OD (C):                                                      46.75mm

TOTAL HEIGHT (D):                                                        10.4mm

THRUST COLLAR BORE (E):                                         10mm

This turbo seal plate fits the following OE turbo part numbers

5439-970-0005

5439-970-0012

5439-970-0017

5439-970-0018

5439-970-0019

5439-970-0020

5439-970-0021

5439-970-0022

5439-970-0023

5439-970-0024

5439-970-0027

5439-970-0047

5439-970-0050

5439-970-0054

5439-970-0057

5439-970-0058

5439-970-0063

5439-998-0027

5440-970-0002

5440-970-0005

5440-970-0007

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
