KP39 BV39 KKK Turbo Sealplate/Backplate (replaces 5443-152-3001)

This is a BRAND NEW Turbocharger Seal Plate / Back Plate

The Turbo seal plate/back plate is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:                                                                           AFTERMARKET

QUALITY :                                                                       OE

OE SEAL PLATE NUMBER:                                           5443-152-3001

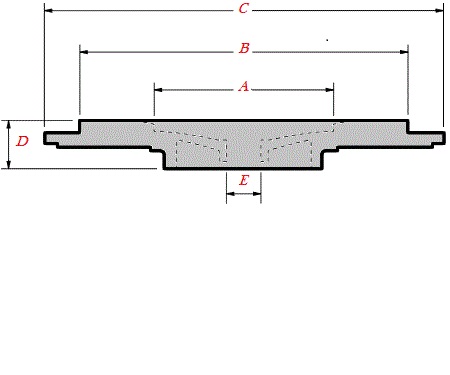

COMPRESSOR RECESS (A):                                        46mm

COMPRESSOR HOUSING LOCATING FLANGE (B):    N/A

SEAL PLATE OD (C):                                                      46.75mm

TOTAL HEIGHT (D):                                                        10.4mm

THRUST COLLAR BORE (E):                                         10mm

This turbo seal plate fits the following OE turbo part numbers

5439-970-0001

5439-970-0003

5439-970-0006

5439-970-0007

5439-970-0008

5439-970-0009

5439-970-0010

5439-970-0011

5439-970-0013

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
