KP35 KKK Turbo Sealplate/Backplate (replaces 5435-152-3001)

This is a BRAND NEW Turbocharger Seal Plate / Back Plate

The Turbo seal plate/back plate is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:                                                                           AFTERMARKET

QUALITY :                                                                       OE

OE SEAL PLATE NUMBER:                                           5435-152-3001

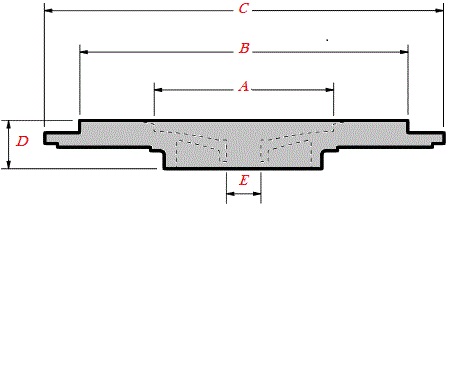

COMPRESSOR RECESS (A):                                        38mm

COMPRESSOR HOUSING LOCATING FLANGE (B):    N/A

SEAL PLATE OD (C):                                                      46.75mm

TOTAL HEIGHT (D):                                                        10.4mm

THRUST COLLAR BORE (E):                                         10mm

This turbo seal plate fits the following OE turbo part numbers

5435-970-0001

5435-970-0005

5435-970-0006

5435-970-0007

5435-970-0009

5435-970-0018

5435-970-0019

5435-970-0021

5435-971-0005

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
