GT/VNT15-25 Garrett Turbo Sealplate/Backplate 47.5/89.7mm

This is a BRAND NEW Turbocharger Seal Plate / Back Plate

The Turbo seal plate/back plate is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:                                                                           AFTERMARKET

QUALITY :                                                                       OE

OE SEAL PLATE NUMBER:                                           Unknown

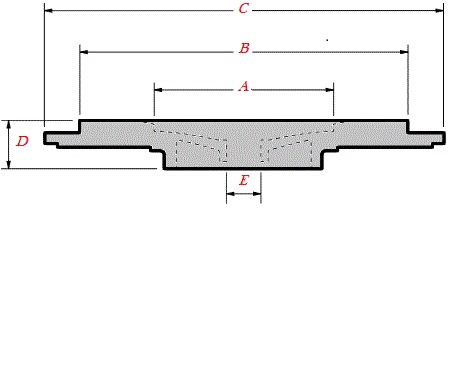

COMPRESSOR RECESS (A):                                        47.5mm

COMPRESSOR HOUSING LOCATING FLANGE (B):   89.7mm

SEAL PLATE OD (C):                                                      99.0mm

TOTAL HEIGHT (D):                                                        13.7mm

THRUST COLLAR BORE (E):                                         10mm

This turbo seal plate fits the following OE turbo part numbers

756867-0001

756867-0002

756867-0003

765261-0002

765261-0003

765261-0004

765261-0005

765261-0006

765261-0007

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
