T3 Garrett Turbo Sealplate/Backplate 409629-0006

This is a BRAND NEW Turbocharger Seal Plate / Back Plate

This turbo seal plate/back plate is made using only the finest materials to make sure it matches or exceeds the standards of the original.

BRAND:                                                                           AFTERMARKET

QUALITY :                                                                       OE

OE SEAL PLATE NUMBER:                                           409629-0006

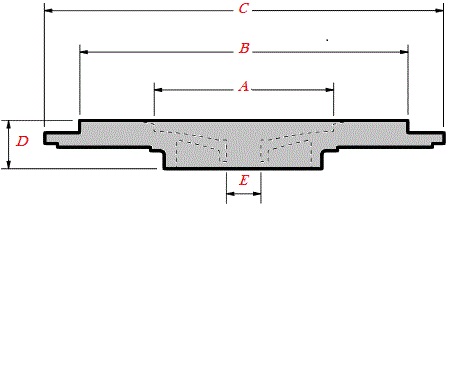

COMPRESSOR RECESS (A):                                        61mm

COMPRESSOR HOUSING LOCATING FLANGE (B):   112.6mm

SEAL PLATE OD (C):                                                     121.7mm

TOTAL HEIGHT (D):                                                        21.3mm

THRUST COLLAR BORE (E):                                         12.7mm

This turbo seal plate fits the following OE turbo part numbers:

465722-0001

465722-0002

465722-0004

465722-0005

465896-0001

465896-0002

466146-0001

466192-0003

466192-0004

466192-0005

466192-0006

466192-0007

466192-0008

466192-0009

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
