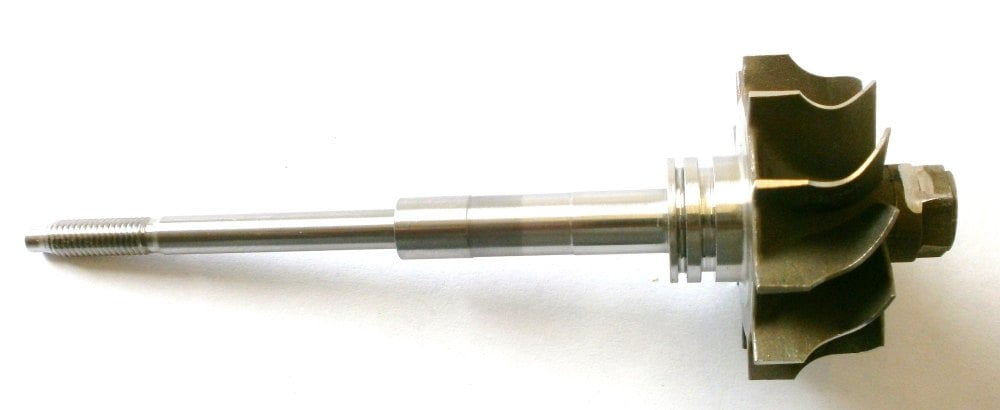

Mitsubishi Turbocharger Turbine Shaft and Wheel TD04 Turbo 49177-30130

This is a BRAND NEW Turbocharger Turbine Shaft and Wheel.

This turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original.

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:    49177-30120 49177-30130

INDUCER DIAMETER (A):                         47.3mm

EXDUCER DIAMETER (B):                        40.0mm

TIP HEIGHT (C):                                         6.8mm

JOURNAL BEARING DIAMETER (D):        7.5mm

COMPRESSOR WHEEL BORE:                 5.0mm

BLADES:                                                      12

SLENDER/STRAIGHT SHAFT:                  Straight

PISTON RING:                                           Single



BALANCED:                                                YES



This turbo turbine shaft and wheel fits the following OE turbo part numbers:

49177-00400

49177-00600

49177-00620

49177-00630

49177-00640

49177-00650

49177-00660

49177-00710

49177-00720

49177-00730

49177-00750

49177-01000

49177-01010

49177-01020

49177-01030

49177-01100

49177-01200

49177-01200

49177-01210

49177-01220

49177-01230

49177-01300

49177-01310

49177-01400

49177-01410

49177-01420

49177-01500

49177-01501

49177-01502

49177-01503

49177-01504

49177-01505

49177-01510

49177-01511

49177-01512

49177-01513

49177-01514

49177-01515

49177-01520

49177-01521

49177-01530

49177-01531

49177-01600

49177-01700

49177-01710

49177-01800

49177-01810

49177-01900

49177-01901

49177-01910

49177-02100

49177-02110

49177-02120

49177-02130

49177-02200

49177-02300

49177-02301

49177-02310

49177-02400

49177-02401

49177-02410

49177-02500

49177-02501

49177-02502

49177-02503

49177-02510

49177-02511

49177-02512

49177-02513

49177-02520

49177-02521

49177-02530

49177-02531

49177-02540

49177-02541

49177-02550

49177-02700

49177-02701

49177-02702

49177-02710

49177-02711

49177-02720

49177-02721

49177-02800

49177-03000

49177-03100

49177-03110

49177-03120

49177-03130

49177-03140

49177-03160

49177-03500

49177-04010

49177-04500

49177-04600

49177-04610

49177-04620

49177-05000

49177-05100

49177-05200

49177-05300

49177-05400

49177-05500

49177-05600

49177-05700

49177-05800

49177-06000

49177-06100

49177-06200

49177-06400

49177-06410

49177-06420

49177-06422

49177-06430

49177-06440

49177-06450

49177-06451

49177-06452

49177-06460

49177-06461

49177-06462

49177-06470

49177-06471

49177-06472

49177-06480

49177-06481

49177-06482

49177-06490

49177-06500

49177-06501

49177-06510

49177-06540

49177-06570

49177-06571

49177-06572

49177-06580

49177-06581

49177-06582

49177-07500

49177-07501

49177-07502

49177-07900

49177-08020

49177-90300

49177-90310

49177-90320

49177-90410

49177-90420

49177-91100

49177-91200

49177-91210

49177-92700

49177-92701

49177-92702

49177-92800

49377-01200

49377-01210

49377-01500

49377-01502

49377-01503

49377-01504

49377-01510

49377-01511

49377-01512

49377-01520

49377-01522

49377-01530

49377-01531

49377-01541

49377-01550

49377-01590

49377-01600

49377-02001

49377-02002

49377-02011

49377-02012

49377-02020

49377-02021

49377-03010

49377-03020

49377-03030

49377-03031

49377-03040

49377-03041

49377-03043

49377-03050

49377-03051

49377-03053

49377-03100

49377-03101

49377-05000

49377-05100

49377-05110

49377-05500

49377-07300

49377-07301

49377-07302

49377-07303

49377-07333



Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED.
