Mitsubishi Turbocharger Turbine Shaft and Wheel TF035 Turbo 49135-30100

This is a BRAND NEW Turbocharger turbine shaft and wheel.

The Turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:    49135-30100

INDUCER DIAMETER (A):                         42.5mm

EXDUCER DIAMETER (B):                        35.0mm

TIP HEIGHT (C):                                         6.5mm

JOURNAL BEARING DIAMETER (D):        7.0mm

COMPRESSOR WHEEL BORE:                 5.0mm

BLADES:                                                      11

SLENDER/STRAIGHT SHAFT:                  Straight

BALANCED:                                                YES

This turbo turbine shaft and  wheel fits the following OE turbo part numbers

49135-02100

49135-02110

49135-02200

49135-02210

49135-02220

49135-02230

49135-02240

49135-02300

49135-02310

49135-02400

49135-02500

49135-02501

49135-02510

49135-02600

49135-03100

49135-03101

49135-03110

49135-03111

49135-03112

49135-03120

49135-03121

49135-03130

49135-03200

49135-03201

49135-03210

49135-03220

49135-03300

49135-03301

49135-03310

49135-03311

49135-04000

49135-04010

49135-04400

49135-04491

49135-04500

49135-04600

49135-04690

49135-04700

49135-04780

49135-05000

49135-05010

49135-05020

49135-05030

49135-05040

49135-05050

49135-05060

49135-05070

49135-05080

49135-05090

49135-06000

49135-06010

49135-06015

49135-06017

49135-06020

49135-06025

49135-06030

49135-06035

49135-06037

49135-06100

49135-06115

49135-06500

49135-07810

Average dispatch: 24 Hours

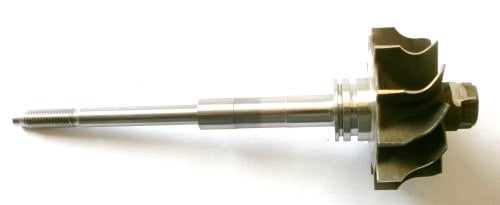

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
