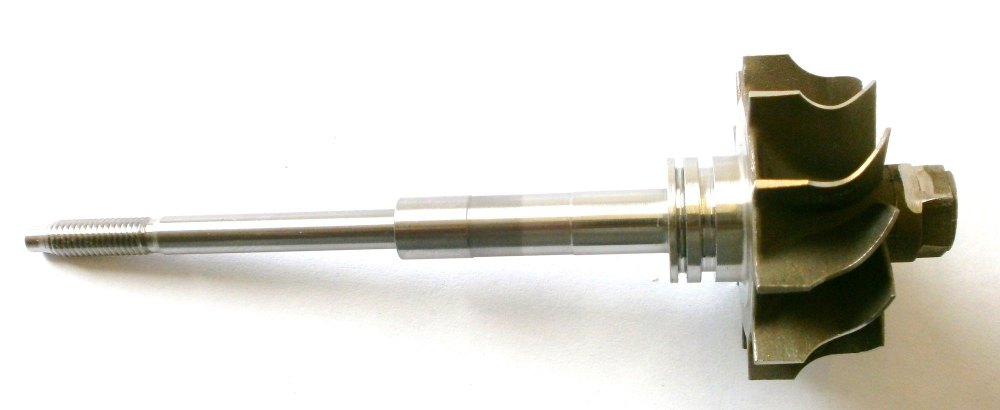

KKK Turbocharger Turbine Shaft and Wheel K14 K16 Turbo 5316-120-5015

This is a BRAND NEW Turbocharger turbine shaft and wheel.

The Turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:    5316-120-5015

INDUCER DIAMETER (A):                         55.0mm

EXDUCER DIAMETER (B):                        46.2mm

TIP HEIGHT (C):                                         6.5mm

JOURNAL BEARING DIAMETER (D):        8.47mm

COMPRESSOR WHEEL BORE:                 5.4mm

BLADES:                                                      12

SLENDER/STRAIGHT SHAFT:                  Straight

BALANCED:                                                YES

This turbo turbine shaft and  wheel fits the following OE turbo part numbers

5316-970-6500

5316-970-6501

5316-970-6734

5316-970-6740

5316-970-6743

5316-970-7004

5316-970-7008

5316-970-7013

5316-970-7014

5316-970-7015

5316-970-7016

5316-970-7017

5316-970-7019

5316-970-7020

5316-970-7021

5316-970-7022

5316-970-7023

5316-970-7024

5316-970-7025

5316-970-7027

5316-970-7028

5316-970-7029

5316-970-7030

5316-970-7101

5316-970-7103

5316-970-7104

5316-970-7105

5316-970-7106

5316-970-7107

5316-970-7111

5316-970-7112

5316-970-7113

5316-970-7114

5316-970-7116

5316-970-7117

5316-970-7118

5316-970-7119

5316-970-7120

5316-970-7121

5316-970-7122

5316-970-7123

5316-970-7124

5316-970-7125

5316-970-7126

5316-970-7127

5316-970-7128

5316-970-7129

5316-970-7130

5316-971-6501

5316-971-7017

5316-971-7023

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
