Schwitzer Turbocharger Turbine Shaft and Wheel 4LE/F/G Turbo 61685

This is a BRAND NEW Turbocharger turbine shaft and wheel.

The Turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:     61685

INDUCER DIAMETER (A):                         96.5mm

EXDUCER DIAMETER (B):                        86.4mm

TIP HEIGHT (C):                                         14.7mm

JOURNAL BEARING DIAMETER (D):       14.25mm

COMPRESSOR WHEEL BORE:                11.1mm

BLADES:                                                      12

SLENDER/STRAIGHT SHAFT:                  Straight

BALANCED:                                                YES

This turbo turbine shaft and  wheel fits the following OE turbo part numbers

3500339

3500548

3501600

3501756

3502723

3502869

3520673

3521228

3525147

3525148

3525150

3525153

3525154

3528318

3528319

3528322

3528327

3533050

3545741

3591741

54692

54797

54921

54950

55068

55277

55321

55356

55536

Average dispatch: 24 Hours

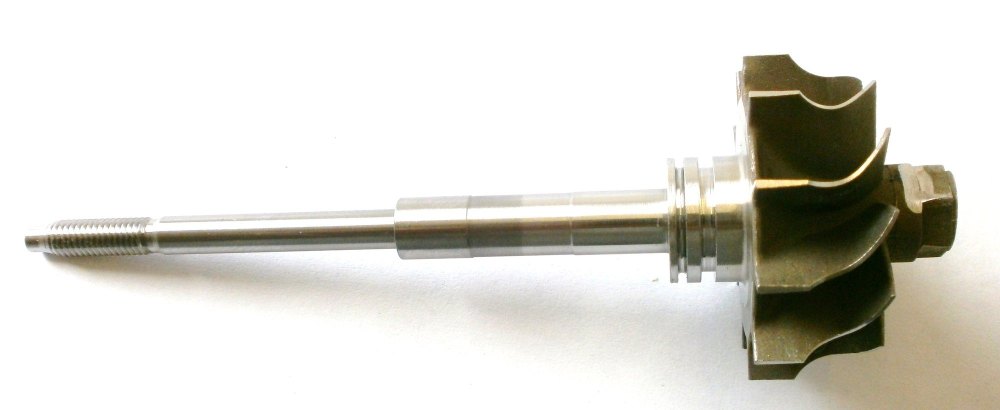

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
