Holset Turbocharger Turbine Shaft and Wheel HC5A/HX80/82/85 Turbo 3521034

This is a BRAND NEW Turbocharger Turbine Shaft and Wheel.

This turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original.

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:     3521034

INDUCER DIAMETER (A):                         129.0mm

EXDUCER DIAMETER (B):                        111.6mm

TIP HEIGHT (C):                                         19.0mm

JOURNAL BEARING DIAMETER (D):        16.0mm

COMPRESSOR WHEEL BORE:                 11.11mm

BLADES:                                                      11

SLENDER/STRAIGHT SHAFT:                  Straight

BALANCED:                                                YES



This turbo turbine shaft and wheel fits the following OE turbo part numbers:

2840258

2840585

2843029

2843030

3523393

3524349

3524479

3524646

3524647

3524648

3524649

3524650

3524660

3524661

3524667

3524668

3524669

3524733

3524734

3524792

3524793

3524819

3524820

3525056

3525057

3525058

3525059

3525211

3525213

3525217

3526235

3526236

3526271

3526272

3526273

3526334

3527382

3527383

3527384

3527696

3527959

3528222

3528455

3528456

3528457

3528458

3528459

3528460

3529718

3529720

3529721

3530008

3530009

3530011

3535164

3535165

3535166

3538266

3538267

3538268

3539278

3539279

3539280

3590820

3590822

3590823

3591408

3591409

3591410

3591712

3591719

3591720

3591748

3591784

3591785

3594025

3594026

3594048

3594049

3594050

3594051

3594052

3594053

3594064

3594065

3594066

3594067

3594068

3594069

3594072

3594073

3594074

3594075

3594076

3594077

3594078

3594101

3594102

3594103

3594104

3594105

3594106

3594111

3594112

3594113

3594114

3594147

3594148

3594157

3594158

3594159

3594181

3594182

3594183

3594184

3594185

3594186

3597927

3597928

3597929

3767948

3767952

3767953

4033344

4033441

4033446

4033447

4033452

4033455

4033460

4033463

4033484

4033725

4044415

4044418



Average dispatch: 24 Hours

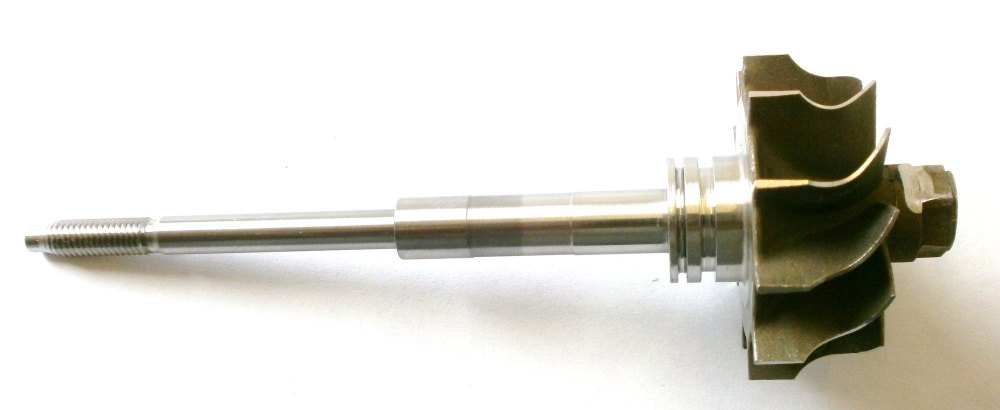

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**
