Holset Turbocharger Turbine Shaft and Wheel H1B/C/D/E/H2A Turbo 3522880

This is a BRAND NEW Turbocharger turbine shaft and wheel.

The Turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:    3522880

INDUCER DIAMETER (A):                         76.0mm

EXDUCER DIAMETER (B):                        67.0mm

TIP HEIGHT (C):                                         12.3mm

JOURNAL BEARING DIAMETER (D):        11.0mm

COMPRESSOR WHEEL BORE:                 7.0mm

BLADES:                                                      12

SLENDER/STRAIGHT SHAFT:                  Straight

BALANCED:                                                YES



This turbo turbine shaft and  wheel fits the following OE turbo part numbers

2834019

2834754

2834755

2835494

2835734

2837304

2837381

2838719

3267861

3520031

3523360

3524034

3524035

3525038

3525039

3525127

3525128

3525487

3525488

3525710

3525711

3525810

3525811

3526368

3526369

3527370

3527371

3528497

3528568

3528569

3528775

3528776

3528777

3528778

3528779

3528780

3528785

3528786

3528793

3528794

3528929

3528930

3530528

3530628

3530629

3530716

3530774

3530811

3531031

3531665

3531666

3531721

3531722

3531884

3532065

3532067

3532152

3532154

3532204

3532516

3532517

3532748

3532958

3533477

3533478

3533964

3533965

3535059

3535456

3535457

3535544

3535545

3535552

3535553

3535554

3535555

3535749

3535750

3536156

3536358

3536359

3536397

3536528

3536529

3536531

3536683

3536684

3536685

3536686

3536719

3536720

3536866

3537439

3537441

3537442

3537443

3537444

3537445

3537785

3537786

3538099

3538100

3539148

3539150

3539502

3539503

3539506

3539507

3539556

3539557

3580177

3580178

3580509

3590079

3590080

3590081

3590082

3590083

3590898

3590947

3591736

3596929

3596930

3596943

3596987

3596988

3596989

3597888

3802303

3802416

3911353

3911354

3911355

4032909

4032977

4032978

4035466

4036420

4038441

4039261

4039262

4039264

4039265

4040250

4040524

4042401

4048581



Average dispatch: 24 Hours

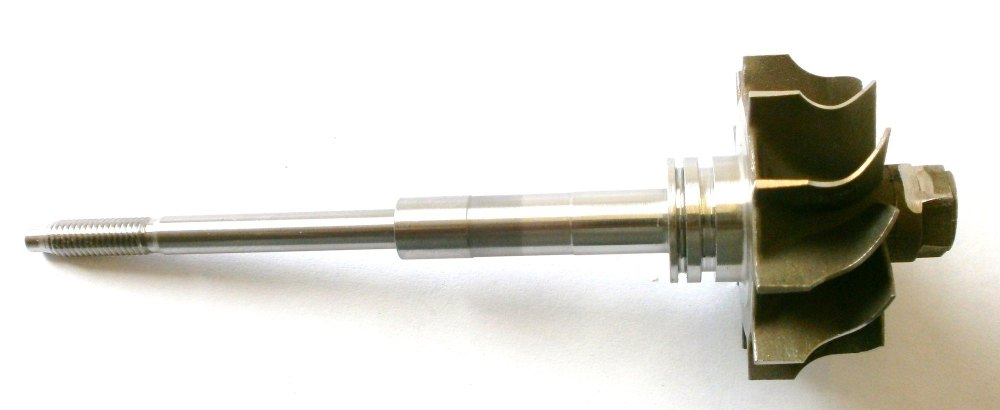

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
