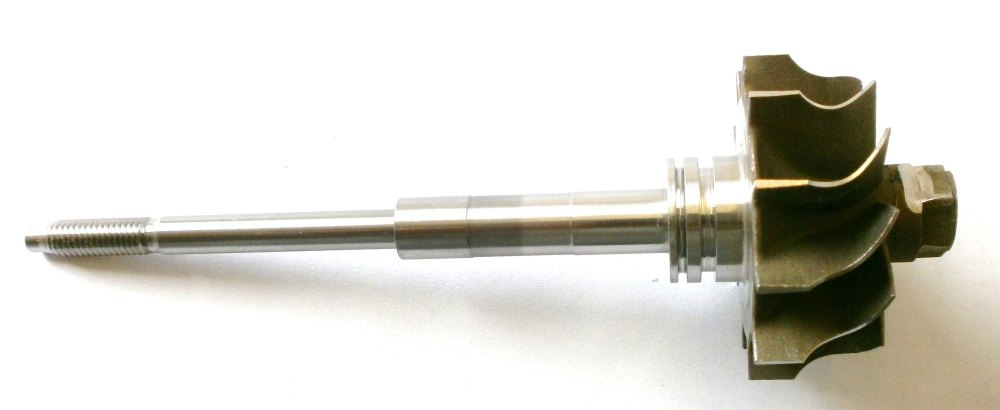

Holset Turbocharger Turbine Shaft and Wheel 4LE/F/G Turbo 3500433

This is a BRAND NEW Turbocharger turbine shaft and wheel.

The Turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER:    3500433

INDUCER DIAMETER (A):                         96.5mm

EXDUCER DIAMETER (B):                        86.4mm

TIP HEIGHT (C):                                         14.7mm

JOURNAL BEARING DIAMETER (D):       14.25mm

COMPRESSOR WHEEL BORE:                 11.10mm

BLADES:                                                      12

SLENDER/STRAIGHT SHAFT:                  Straight

BALANCED:                                                YES

This turbo turbine shaft and  wheel fits the following OE turbo part numbers

2842158

3500557

3501175

3501176

3501267

3501268

3502075

3502076

3502077

3502078

3502423

3502425

3502427

3502594

3503327

3503428

3503780

3503979

3504412

3504414

3504484

3520642

3521419

3521437

3521452

3521453

3521454

3521457

3521460

3521595

3521598

3521627

3521628

3521637

3521638

3521743

3522460

3523055

3523894

3524782

3524783

3525094

3525692

3525693

3526707

3526708

3526955

3526956

3528320

3528321

3531479

3531480

3533020

3545515

3591799

4033539

4033559

4033563

4035413

Average dispatch: 24 Hours

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
