Garrett Turbocharger Turbine Shaft and Wheel GT/VNT15-25 Turbo 434715-0023

This is a BRAND NEW Turbocharger turbine shaft and wheel.

The Turbo turbine shaft and wheel is made using only the finest materials to make sure it matches or exceeds the standards of the original

BRAND:    AFTERMARKET

QUALITY : OE

OE COMPRESSOR WHEEL NUMBER: 434715-0023

INDUCER DIAMETER (A):                         47.0mm

EXDUCER DIAMETER (B):                        40.0mm

TIP HEIGHT (C):                                         7.5mm

JOURNAL BEARING DIAMETER (D):        7.88mm

COMPRESSOR WHEEL BORE:                5.08mm

BLADES:                                                      12

SLENDER/STRAIGHT SHAFT:                 Slender

BALANCED:                                                YES

This turbo turbine shaft and  wheel fits the following OE turbo part numbers

700625-0001

700625-0002

716111-0001

Average dispatch: 24 Hours

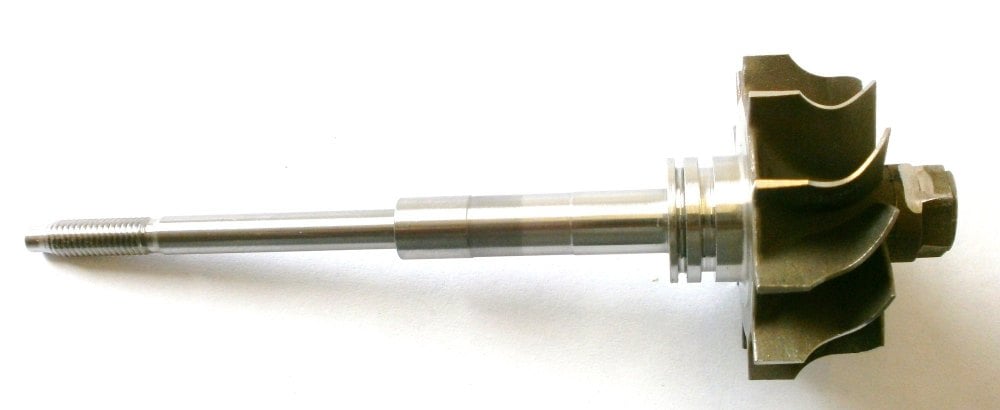

**PHOTO FOR ILLUSTRATION PURPOSES ONLY**

THE USE OF MANUFACTURERS NAMES, PART NUMBERS AND SYMBOLS ARE FOR THE USE OF REFERENCING ONLY AND DO NOT IMPLY THE PART IS MADE BY THE SAID MANUFACTURER.

ALTHOUGH WE MAKE OUR GREATEST EFFORTS TO ENSURE ALL OUR TURBO PRODUCTS ARE DESCRIBED CORRECTLY INCLUDING FITMENT INFORMATION AND DIMENSIONAL REFERENCES, WE CANNOT GUARANTEE THESE TO BE CORRECT AS MISTAKES CAN HAPPEN. WE WILL NOT BE HELD FOR ANY DISCREPANCIES DISPLAYED
