Genuine Garrett Turbo Rebuild Repair Kit GT15-25 Universal "SUPERKIT" 732252-0001

This Turbo rebuild kit comes direct from Garrett themselves and is ideal for the Garrett GT Turbochargers from the GT15 all the way through to the GT2560 (excluding Ball Bearing)  This kit carries all variants of the service items used on these units including superback parts, flat back parts and both straight and slender shafts

Being a Genuine service kit, you can be rest assured that you are receiving 100% quality with no corners cut.

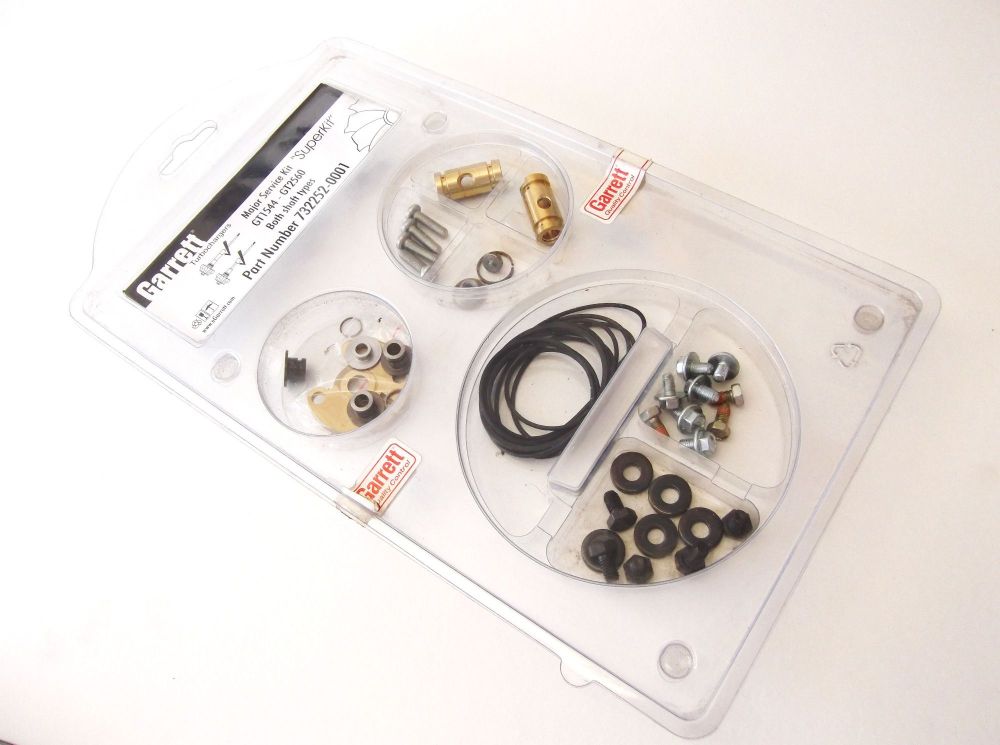

CONTENTS

1 x 360 degree steel thrust bearing (standard thrust 1st generation)

1 x Straight shaft journal bearing

1 x Slender shaft journal bearing

1 x Front oil seal 9.3mm (piston ring)

1 x Front oil seal 10mm (piston ring)

1 x Rear oil seal (piston ring)

1 x 9.3mm Thrust collar

1 x 10mm Thrust collar (super back style compressor)

1 x 10mm Thrust collar (flat back style compressor)

1 x Thrust washer

1 x Bearing housing O ring

5 x Compressor housing O ring

1 x Anti rotation pin

1 x Shaft nut (left hand nut)

4 x Seal plate bolt

5 x Turbine Bolt

5 x Turbine washer

5 x Compressor Bolt (flanged)

3 x Actuator bracket mounting bolt

This kit fits all of the GT15-25 range of units inc

GT1544V,  GT1549, GT1749, GT1752, GT1749, GT1752, GT1849, GT1852, GT2049, GT2052, GT2060, GT2249, GT2260, GT2560

All parts come in the original Garrett packaging together with quality tags.
