This turbocharger electronic actuator is OE quality and ideal to replace your worn or faulty original unit.

BV40 electronic actuator.

CONDITION:New

BRAND:Aftermarket

Turbocharger Part Numbers:

5440-970-0010

5440-970-0013

5440-970-0019

5440-970-0026

BMW 3 Series/ 4 Series/ 5 Series/ 6 Series/ 7 Series/ X3/ X4/ X5/ X6

3.0D


Actuator part numbers:

6NW010099-05

59001107236

This actuator is a direct replacement only for the part numbers and vehicles listed above.

This actuator is designed to be programmed once installed to ensure exact flow requirements are met to achieve maximum efficiency.

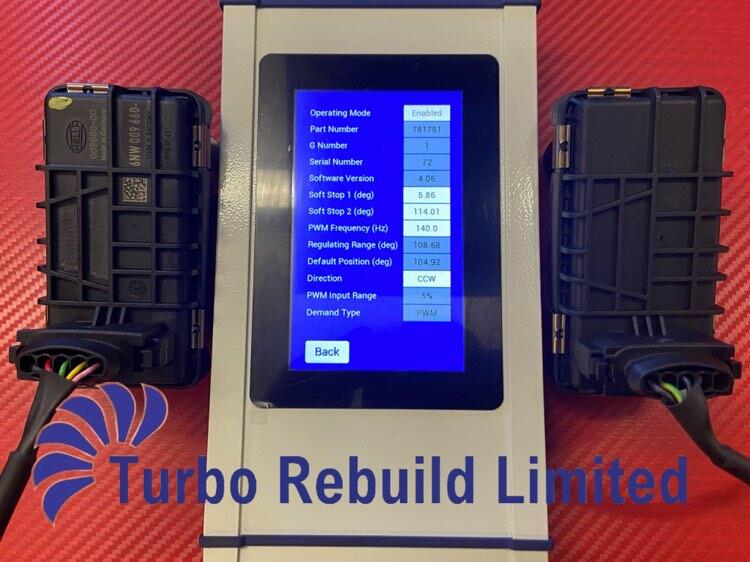

Our replacement REA/UTA actuators are supplied with a base program installed specific to the actuator part number and in many cases work on fitment, however this is sadly not always the case and programming is required via dedicated specialist turbocharger actuator programmers. To assist DIY repair, Turbo Rebuild Limited offer the following solutions for REA and UTA replacement.

1 – “Flow Match Service” – Send us your original actuator and we will measure the flow data from your unit and “flow match” the new actuator to allow direct fit, and will then send your new plug and play replacement.

Cost: FREE

Simply click here to add the Flow Match Service to your basket alongside the actuator you wish to purchase, checkout and then send your original actuator to us.

Once received, we will program the new actuator and return both back to you.

*Original actuator must be intact and power up to allow data retrieval.

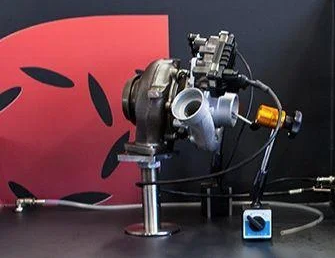

2 – “Fit and Flow” – Our “Fit and Flow” service involves removing your Turbocharger from the vehicle and sending to ourselves**. Upon receipt, our technicians will remove the original actuator, install the new actuator and will professionally set up and calibrate on our state of the art flow bench before return. This will not only ensure plug and play capability, but also ensure maximum efficiency is met. Your original actuator will be returned as well as your turbo with the new replacement actuator installed.

Cost: £80 plus VAT

Simply click here to add the Fit and Flow Service to your basket alongside the actuator you wish to purchase, checkout and then send your original turbo and actuator to us.

Once received, we will program the new actuator to your supplied turbo and return both back to you.

**this must be done at your own cost and by a garage of your choice

NOTE:  All actuator services offered by Turbo Rebuild Limited are supplied to a turbocharger in perfect working order without underlying issues. Should the turbocharger not operate as required due to underlying turbocharger issues (e.g.: Damaged turbocharger internals, sticking or seized internals etc.) then any further remedial works will be chargeable of which a quotation will be offered before any works are undertaken.

Turbo Rebuild cannot be held responsible for incorrect operation due to incorrect purchase.

Please contact us if you require confirmation this part is correct.

All turbocharger manufacturers names, logos and part numbers are for identification purposes and cross referencing only and do not imply the part is a genuine part made by said manufacturer unless specifically stated.  Although we make every effort to ensure all information is correct, we cannot be held responsible for errors and advise you ensure part is correct for your needs.
